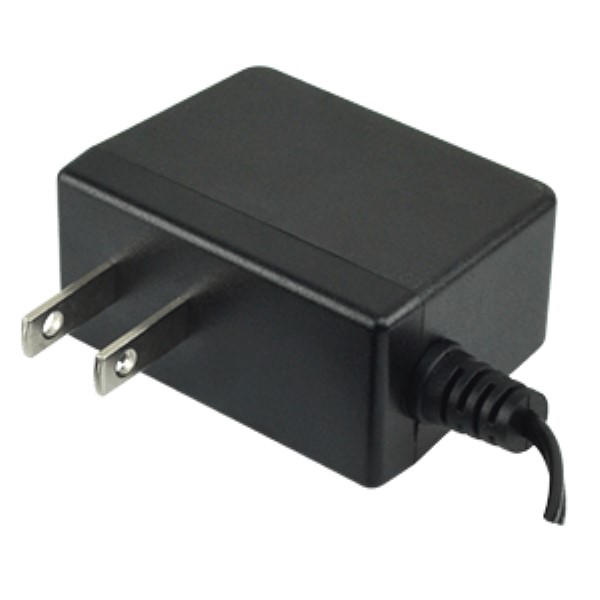

Image is representational - see mfr. specs

DATA SHEET

SWI6-5-N-P5R

CUI Inc.

AC/DC Adapter - Wall Mount - 7.5 Watts: 5V @ 1.5A - NA Input Blades - Lvl VI

RoHS Compliant

Box Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

CUI Inc.

Part No:

SWI6-5-N-P5R

RoHS:

Yes

HTS:

8504409510

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

100

Package Type:

Box

AC Input Current - Maximum:

0.19A

Dimension:

56 x 28 x42 mm

Maximum Input Current:

0.19 A

Maximum AC Input Voltage:

264

Minimum DC Input Voltage:

Not App

DOE Efficiency Level:

CoC Tier:

Style:

WallMount

Ripple & Noise:

100 mV

AC Input Voltage:

90 to 264

Maximum DC Input Voltage:

Not App

Output Type:

Fixed

Input Voltage:

90 to 264Vac

Output Voltage:

5 VDC

Mounting:

External

Input/Output Type:

AC/DC

Maximum Output Current:

1.5 A

Dimensions L x W x H(in):

2.21 x 1.11 x 1.66 in

Output Connector Diameters:

2.1 x 5.5 mm

Overload Protection:

Yes

Special Features:

DoE Level VI Efficiency

Power Indicator:

DC Input Voltage:

Not App

Family:

SWI6-N

Short Circuit Protection:

Yes

Output Current:

1.5 A

Power:

7.5 W

Over Voltage Protection:

Yes

Operating Temperature:

0 to 40 °C

Minimum AC Input Voltage:

Minimum Load (Amps):

Type:

Regulated-Switching

Output Connector Angle:

Right Angle

Safety Class:

None

Minimum Input Voltage:

90Vac

Power Rating:

7.5 W

Adapter Color:

Black

Output Connector Type:

Barrel - Female

Grade:

Commercial

Output Cord Length:

1.5m (59.1in)

Thermal Protection:

Load Regulation:

5.00 %

AC Input Current - Typical:

Not Spec'd

Efficiency:

Not Spec'd

Input Connector Type:

NA Blades (U.S. and Others)

Safety Approvals:

cUL, PSE, UL

Minimum Isolation Voltage:

3000Vac

Line Regulation:

5.00 %

Dimensions LxWxH:

2.205 x 1.103 x 1.654 in

MOPP:

Not App

Dimensions L x W x H:

56.0 x 28.0 x 42.0 mm

Output Connector Polarity:

Center Positive

Typical Hold-Up Time:

10ms(Min)

Maximum Output Power:

7.5 W

Input Frequency:

47 to 63 Hz

PFC:

Mounting Style:

External

Package Type:

Wall Plug

Number of Outputs:

Typical Inrush Current:

60A(Max) at 240Vac

Maximum Input Voltage:

264Vac

AC/DC Adapter - Wall Mount - 7.5 Watts: 5V @ 1.5A - NA Input Blades - Lvl VI

Product Highlights:

Potential Applications:

Search Keywords:

SWI65NP5R

This product is not in stock and cannot be back-ordered

This product is discontinued, but still in stock

This product has been discontinued by the supplier

Different packaging options available. See Alternatives

Possible Replacement options available. See Alternatives

This product is NOT RoHS Compliant. See Alternatives

End of Life: Final orders must be placed by

IN STOCK: 0

BONDED Quantity:

Manufacturer Stock:

0 can ship

On Order:

Stock lot only:

Minimum Order Quantity:

MOQ for out of Stock Qty:

Multiple:

Factory Lead-Time

21 Weeks can ship

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

VIEW PRODUCT

Min quantity should be greater than or equal () in order to activate the custom price. Otherwise you will get the normal price.

Price (USD)

Quantity

Unit Price

Ext. Price

$11.24

$56.20

$10.19

$254.75

$9.73

$486.50

100

$9.45

$945.00

300

$8.93

$2,679.00

500

$8.69

$4,345.00

1,000 +

$8.56

$8,560.00

Suppliers Standard Package

Standard Packaging

Standard packaging is the minimum package size Eccoconnectors.com receives from the supplier. The minimum order quantity might be less than the supplier's standard packaging. The type of packaging (such as reel, tube, tray) may be subject to change when the product is divided into smaller quantities.

Click for Quote

Please Note: Tariffs may apply for U.S. shipments

Schedule Order

You may schedule release quantities and ship dates in the shopping cart.

Product Guides

3D Model

Datasheet
