SWI6-5.9-N-P5R by cui inc.

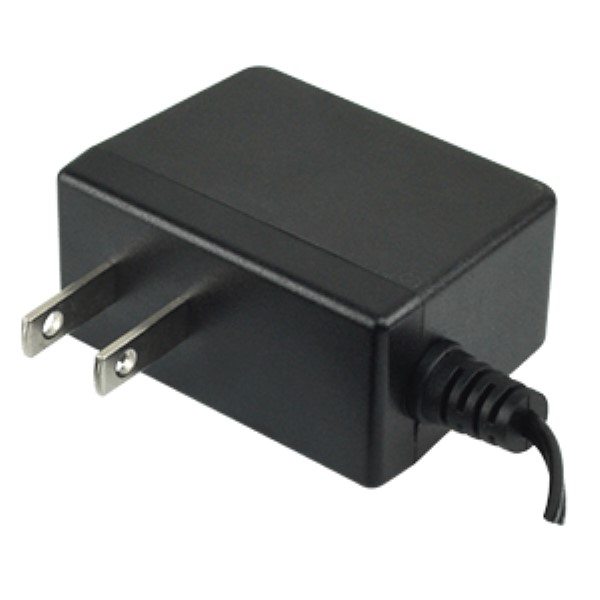

Image is representational - see mfr. specs
DATA SHEET

SWI6-5.9-N-P5R

CUI Inc.

AC/DC Adapter - Wall Mount - 7.08 Watts - 5.9V @ 1.2A - NA Input Blades - Lvl VI

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SWI6-5.9-N-P5R
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
Box
AC Input Current - Maximum:
0.19A
Maximum Input Current:
0.19 A
DOE Efficiency Level:
VI
Maximum AC Input Voltage:
264
Family:
SWI6-N
Power Indicator:
No
Power Rating:
7.08 W
CoC Tier:
No
Minimum Input Voltage:
90Vac
Dimension:
56 x 28 x42 mm
Overload Protection:
Yes
Output Current:
1.2 A
Mounting:
External
Input Connector Type:
NA Blades (U.S. and Others)
Output Connector Diameters:
2.1 x 5.5 mm
Input Voltage:
90 to 264Vac
Short Circuit Protection:
Yes
AC Input Voltage:
90 to 264
Adapter Color:
Black
Safety Approvals:
cUL, PSE, UL
Typical Inrush Current:
60A(Max) at 240Vac
MOPP:
Not App
Maximum Input Voltage:
264Vac
Input Frequency:
47 to 63 Hz
Minimum DC Input Voltage:
Not App
Mounting Style:
External
Maximum Output Power:
7.08 W
Style:
WallMount
Line Regulation:
5.00 %
Package Type:
Wall Plug
Ripple & Noise:
100 mV
Output Connector Angle:
Right Angle
Typical Hold-Up Time:
10ms(Min)
Minimum AC Input Voltage:
90
Minimum Isolation Voltage:
3000Vac
Input/Output Type:
AC/DC
Output Connector Polarity:
Center Positive
Output Voltage:
5.9 Vdc
Safety Class:
None
Type:
Regulated-Switching
PFC:
No
Output Type:
Fixed
Dimensions L x W x H:
56.0 x 28.0 x 42.0 mm
Minimum Load (Amps):
0
Maximum DC Input Voltage:
Not App
Over Voltage Protection:
Yes
Output Connector Type:
Barrel - Female
Efficiency:
Not Spec'd
Number of Outputs:
1
Output Cord Length:
1.5m (59.1in)
Grade:
Commercial
AC Input Current - Typical:
Not Spec'd
DC Input Voltage:
Not App
Load Regulation:
5.00 %
Dimensions L x W x H(in):
2.21 x 1.11 x 1.66 in
Operating Temperature:
0 to 40 °C
Power:
7.08 W
Thermal Protection:
No
Maximum Output Current:
1.2 A
Dimensions LxWxH:
2.205 x 1.103 x 1.654 in
Special Features:
DoE Level VI Efficiency
AC/DC Adapter - Wall Mount - 7.08 Watts - 5.9V @ 1.2A - NA Input Blades - Lvl VI
Search Keywords:
SWI659NP5R
IN STOCK: 0
MOQ for out of Stock Qty:
125
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
5
$23.66
$118.30
25
$23.31
$582.75
50
$22.96
$1,148.00
125
$22.61
$2,826.25
250
$11.97
$2,992.50
375
$8.43
$3,161.25
500 +
$8.25
$4,125.00
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
