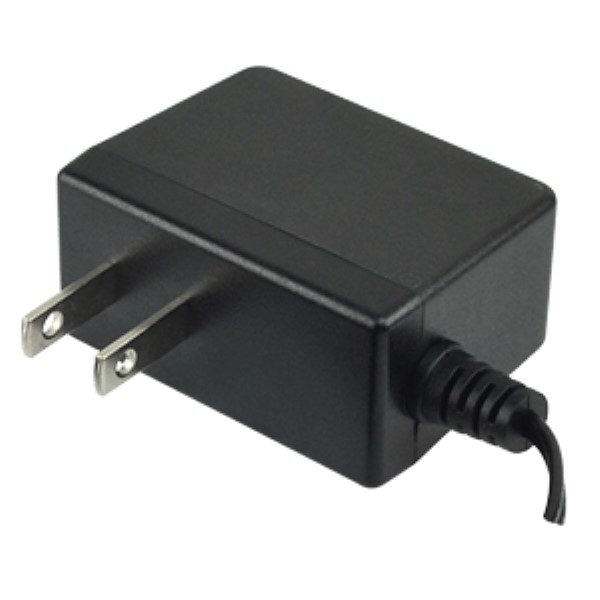

Image is representational - see mfr. specs

DATA SHEET

SWI6-12-N-N5

CUI Inc.

AC/DC Adapter - Wall Mount - 7.2 Watts: 12V @ 0.6A - NA Input Blades - Lvl VI

RoHS Compliant

Box Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

CUI Inc.

Part No:

SWI6-12-N-N5

RoHS:

Yes

HTS:

8504409510

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

100

Package Type:

Box

Input Frequency:

47 to 63 Hz

Maximum Output Current:

0.6 A

Output Current:

0.6 A

Dimensions L x W x H:

56.0 x 28.0 x 42.0 mm

Input Voltage:

90 to 264Vac

Ripple & Noise:

120 mV

Maximum Input Voltage:

264Vac

Dimensions L x W x H(in):

2.21 x 1.11 x 1.66 in

Power Indicator:

MOPP:

Not App

Minimum Isolation Voltage:

3000Vac

Output Connector Diameters:

2.1 x 5.5 mm

Family:

SWI6-N

Minimum Input Voltage:

90Vac

AC Input Voltage:

90 to 264

Grade:

Commercial

Output Voltage:

12 VDC

Typical Inrush Current:

60A(Max) at 240Vac

Output Connector Angle:

Straight

Load Regulation:

5.00 %

DOE Efficiency Level:

Short Circuit Protection:

Yes

Style:

WallMount

Thermal Protection:

Output Cord Length:

1.5m (59.1in)

Adapter Color:

Black

Maximum Input Current:

0.19 A

Type:

Regulated-Switching

Package Type:

Wall Plug

Power:

7.2 W

Power Rating:

7.2 W

AC Input Current - Typical:

Not Spec'd

Minimum AC Input Voltage:

Operating Temperature:

0 to 40 °C

PFC:

Mounting:

External

Overload Protection:

Yes

Input Connector Type:

NA Blades (U.S. and Others)

Minimum DC Input Voltage:

Not App

Dimension:

56 x 28 x42 mm

Over Voltage Protection:

Yes

Maximum Output Power:

7.2 W

CoC Tier:

Safety Approvals:

cUL, PSE, UL

Dimensions LxWxH:

2.205 x 1.102 x 1.654 in

Safety Class:

None

Maximum AC Input Voltage:

264

AC Input Current - Maximum:

0.19A

Maximum DC Input Voltage:

Not App

Typical Hold-Up Time:

10ms(Min)

Minimum Load (Amps):

Input/Output Type:

AC/DC

Number of Outputs:

Special Features:

DoE Level VI Efficiency

Mounting Style:

External

Output Type:

Fixed

Output Connector Type:

Barrel - Female

Line Regulation:

5.00 %

DC Input Voltage:

Not App

Efficiency:

Not Spec'd

Output Connector Polarity:

Center Negative

AC/DC Adapter - Wall Mount - 7.2 Watts: 12V @ 0.6A - NA Input Blades - Lvl VI

Product Highlights:

Potential Applications:

Search Keywords:

SWI612NN5

This product is not in stock and cannot be back-ordered

This product is discontinued, but still in stock

This product has been discontinued by the supplier

Different packaging options available. See Alternatives

Possible Replacement options available. See Alternatives

This product is NOT RoHS Compliant. See Alternatives

End of Life: Final orders must be placed by

IN STOCK: 0

BONDED Quantity:

Manufacturer Stock:

0 can ship

On Order:

Stock lot only:

Minimum Order Quantity:

MOQ for out of Stock Qty:

Multiple:

Factory Lead-Time

21 Weeks can ship

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

VIEW PRODUCT

Min quantity should be greater than or equal () in order to activate the custom price. Otherwise you will get the normal price.

Price (USD)

Quantity

Unit Price

Ext. Price

$8.40

$42.00

$8.11

$202.75

$7.99

$399.50

100

$7.87

$787.00

300

$7.75

$2,325.00

500

$7.63

$3,815.00

1,000 +

$7.52

$7,520.00

Suppliers Standard Package

Standard Packaging

Standard packaging is the minimum package size Eccoconnectors.com receives from the supplier. The minimum order quantity might be less than the supplier's standard packaging. The type of packaging (such as reel, tube, tray) may be subject to change when the product is divided into smaller quantities.

Click for Quote

Please Note: Tariffs may apply for U.S. shipments

Schedule Order

You may schedule release quantities and ship dates in the shopping cart.

Product Guides

3D Model

Datasheet
