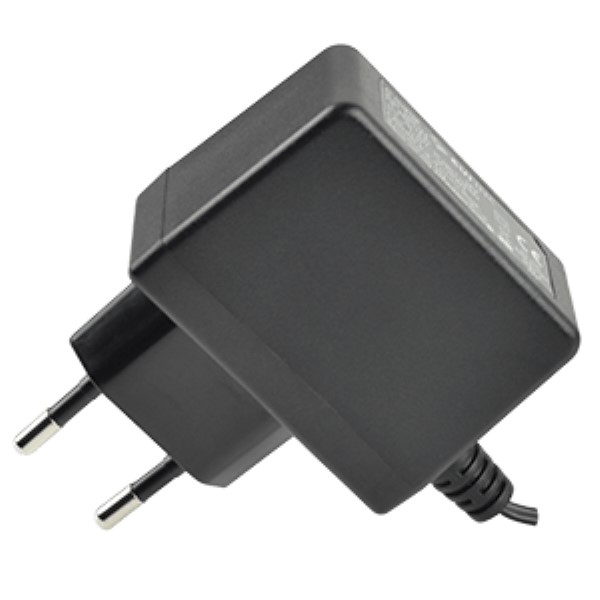

Image is representational - see mfr. specs

DATA SHEET

SWI6-12-E-P5

CUI Inc.

AC/DC Adapter - Wall Mount - 7.2 Watts: 12V @ 0.6A - EUan Input Blades - Lvl VI

RoHS Compliant

Box Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

CUI Inc.

Part No:

SWI6-12-E-P5

RoHS:

Yes

HTS:

8504409510

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

100

Package Type:

Box

Maximum Output Power:

7.2 W

Typical Inrush Current:

60A(Max) at 240Vac

Line Regulation:

5.00 %

Minimum AC Input Voltage:

Maximum Input Current:

0.19 A

Adapter Color:

Black

Output Connector Angle:

Straight

Package Type:

Wall Plug

Typical Hold-Up Time:

10ms(Min)

AC Input Current - Maximum:

0.19A

Mounting Style:

External

Dimensions L x W x H:

56.0 x 28.0 x 60.0 mm

Dimensions L x W x H(in):

2.21 x 1.11 x 1.66 in

Minimum Input Voltage:

90Vac

Overload Protection:

Yes

Output Cord Length:

1.5m (59.1in)

Power Indicator:

Over Voltage Protection:

Yes

AC Input Current - Typical:

Not Spec'd

DOE Efficiency Level:

Output Connector Diameters:

2.1 x 5.5 mm

Output Connector Type:

Barrel - Female

Minimum Isolation Voltage:

3000Vac

Output Connector Polarity:

Center Positive

Input/Output Type:

AC/DC

Power:

7.2 W

MOPP:

Not App

Maximum Output Current:

0.6 A

Safety Class:

None

Family:

SWI6-E

Power Rating:

7.2 W

Minimum Load (Amps):

Maximum AC Input Voltage:

264

Maximum DC Input Voltage:

Not App

PFC:

Number of Outputs:

Input Frequency:

47 to 63 Hz

Safety Approvals:

Output Current:

0.6 A

Input Voltage:

90 to 264Vac

Output Type:

Fixed

Output Voltage:

12 VDC

DC Input Voltage:

Not App

Style:

WallMount

Efficiency:

Not Spec'd

Short Circuit Protection:

Yes

Input Connector Type:

EU Blades

Ripple & Noise:

120 mV

Dimension:

56 x 28 X60 mm

Mounting:

External

Operating Temperature:

0 to 40 °C

AC Input Voltage:

90 to 264

Maximum Input Voltage:

264Vac

Dimensions LxWxH:

2.205 x 1.103x 1.654 in

Thermal Protection:

Grade:

Commercial

Type:

Regulated-Switching

CoC Tier:

Minimum DC Input Voltage:

Not App

Load Regulation:

5.00 %

Special Features:

DoE Level VI Efficiency

AC/DC Adapter - Wall Mount - 7.2 Watts: 12V @ 0.6A - EUan Input Blades - Lvl VI

Product Highlights:

Potential Applications:

Search Keywords:

SWI612EP5

This product is not in stock and cannot be back-ordered

This product is discontinued, but still in stock

This product has been discontinued by the supplier

Different packaging options available. See Alternatives

Possible Replacement options available. See Alternatives

This product is NOT RoHS Compliant. See Alternatives

End of Life: Final orders must be placed by

IN STOCK: 0

BONDED Quantity:

Manufacturer Stock:

0 can ship

On Order:

Stock lot only:

Minimum Order Quantity:

MOQ for out of Stock Qty:

Multiple:

Factory Lead-Time

21 Weeks can ship

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

VIEW PRODUCT

Min quantity should be greater than or equal () in order to activate the custom price. Otherwise you will get the normal price.

Price (USD)

Quantity

Unit Price

Ext. Price

$11.80

$59.00

$10.69

$267.25

$10.21

$510.50

100

$9.91

$991.00

300

$9.37

$2,811.00

500

$9.13

$4,565.00

1,000 +

$8.99

$8,990.00
