SMI6-5-K-P6 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SMI6-5-K-P6

CUI Inc.

AC/DC Adapter - Wall Mount - 6 Watts: 5V @ 1.2A - 5V @ 1.2A ++ NO AC INPUT BLADES ++ Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SMI6-5-K-P6
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
120
Package Type:
Box
CoC Tier:
2
Minimum Input Voltage:
90Vac
Maximum AC Input Voltage:
264
Maximum Output Current:
1.2 A
Dimensions LxWxH:
2.52 x 1.594 x 1.181 in
Load Regulation:
6.00 %
Short Circuit Protection:
Yes
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Output Voltage:
5 VDC
Grade:
Commercial
Input/Output Type:
AC/DC
Number of Outputs:
1
Efficiency:
Not Spec'd
Maximum DC Input Voltage:
Not App
Dimensions L x W x H(in):
2.52 x 1.60 x 1.19 in
Minimum AC Input Voltage:
90
PFC:
No
Output Connector Angle:
Straight
Minimum Load (Amps):
0
Mounting:
External
Safety Class:
None
Maximum Input Voltage:
264Vac
MOPP:
Not App
Maximum Input Current:
0.3 A
Power Rating:
6 W
Minimum Isolation Voltage:
4242Vdc/3000Vac
Type:
Regulated-Switching
Output Type:
Fixed
AC Input Current - Typical:
Not Spec'd
Input Connector Type:
Interchangeable-Order Separately
DC Input Voltage:
Not App
Output Connector Polarity:
Center Positive
Maximum Output Power:
6 W
Output Cord Length:
1.83m (72.1in)
Output Connector Type:
Barrel - Female
Typical Hold-Up Time:
Not Spec'd
Over Voltage Protection:
Yes
Family:
SMI6
Package Type:
Wall Plug
Dimension:
64.1 x 40.5 x 30 mm
Typical Inrush Current:
Not Spec'd
Input Voltage:
90 to 264Vac
Thermal Protection:
No
Dimensions L x W x H:
64.1 x 40.5 x 30.0 mm
Mounting Style:
External
Minimum DC Input Voltage:
Not App
Ripple & Noise:
150 mV
Output Current:
1.2 A
Overload Protection:
No
Style:
Interchangeable WallMount
Input Frequency:
47 to 63 Hz
AC Input Voltage:
90 to 264
Output Connector Diameters:
2.5 x 5.5 mm
Adapter Color:
Black
Line Regulation:
1.00 %
Power Indicator:
No
Operating Temperature:
0 to 40 °C
Power:
6 W
AC Input Current - Maximum:
0.3A
Safety Approvals:
CCC, CE, cUL, GS, PSE, RCM, TUV, UL
DOE Efficiency Level:
VI
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 6 Watts: 5V @ 1.2A - 5V @ 1.2A ++ NO AC INPUT BLADES ++ Lvl VI/T2
Search Keywords:
SMI65KP6
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

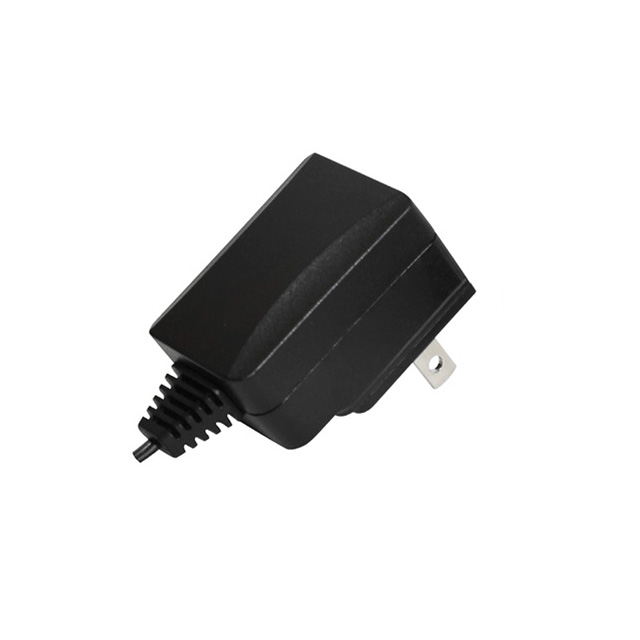

RECOMMENDED REPLACEMENT
SMI6B-5-K-P6
