SMI6-5-K-P5R by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SMI6-5-K-P5R

CUI Inc.

AC/DC Adapter - Wall Mount - 6 Watts: 5V @ 1.2A - 5V @ 1.2A ++ NO AC INPUT BLADES ++ Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SMI6-5-K-P5R
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
120
Package Type:
Box
Input Frequency:
47 to 63 Hz
Operating Temperature:
0 to 40 °C
Input Connector Type:
Interchangeable-Order Separately
Safety Approvals:
CCC, CE, cUL, GS, PSE, RCM, TUV, UL
Minimum AC Input Voltage:
90
Family:
SMI6
Dimensions L x W x H:
64.1 x 40.5 x 30.0 mm
Minimum Isolation Voltage:
4242Vdc/3000Vac
Minimum Input Voltage:
90Vac
Line Regulation:
1.00 %
Package Type:
Wall Plug
Type:
Regulated-Switching
CoC Tier:
2
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Output Voltage:
5 VDC
Power:
6 W
MOPP:
Not App
Minimum DC Input Voltage:
Not App
AC Input Voltage:
90 to 264
Short Circuit Protection:
Yes
AC Input Current - Typical:
Not Spec'd
Maximum Output Power:
6 W
Output Cord Length:
1.83m (72.1in)
Output Current:
1.2 A
Safety Class:
None
Input Voltage:
90 to 264Vac
Ripple & Noise:
150 mV
Output Connector Polarity:
Center Positive
Mounting Style:
External
Mounting:
External
Overload Protection:
No
Dimensions L x W x H(in):
2.52 x 1.60 x 1.19 in
Dimension:
64.1 x 40.5 x 30 mm
Dimensions LxWxH:
2.52 x 1.594 x 1.181 in
Style:
Interchangeable WallMount
Power Rating:
6 W
AC Input Current - Maximum:
0.3A
Load Regulation:
6.00 %
Typical Hold-Up Time:
Not Spec'd
Adapter Color:
Black
Minimum Load (Amps):
0
Over Voltage Protection:
Yes
DOE Efficiency Level:
VI
Maximum DC Input Voltage:
Not App
Maximum Output Current:
1.2 A
Grade:
Commercial
Output Connector Angle:
Right Angle
Power Indicator:
No
Output Type:
Fixed
Maximum Input Voltage:
264Vac
Input/Output Type:
AC/DC
Output Connector Type:
Barrel - Female
Maximum Input Current:
0.3 A
DC Input Voltage:
Not App
Efficiency:
Not Spec'd
PFC:
No
Typical Inrush Current:
Not Spec'd
Thermal Protection:
No
Output Connector Diameters:
2.1 x 5.5 mm
Number of Outputs:
1
Maximum AC Input Voltage:
264
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 6 Watts: 5V @ 1.2A - 5V @ 1.2A ++ NO AC INPUT BLADES ++ Lvl VI/T2
Search Keywords:
SMI65KP5R
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

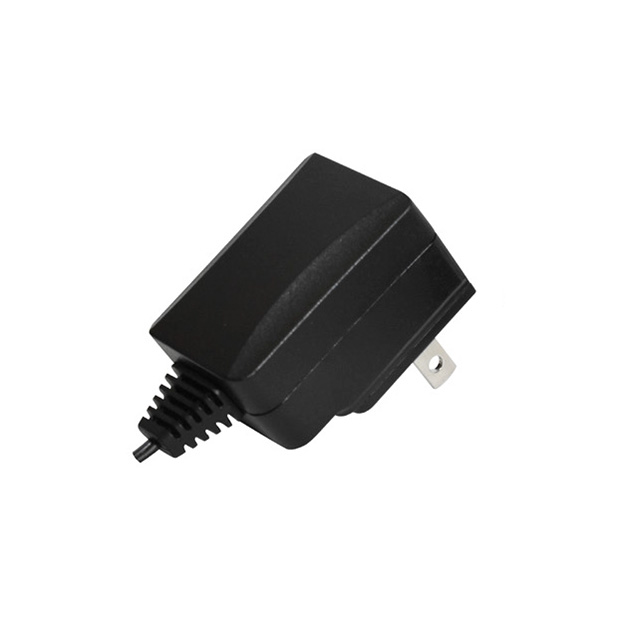

RECOMMENDED REPLACEMENT
SMI6B-5-K-P5R
SMI6B-5-K-P5R
