SMI6-12-K-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SMI6-12-K-P5

CUI Inc.

AC/DC Adapter - Wall Mount - Watts: 12V @ 0.5A ++ NO AC INPUT BLADES ++ Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SMI6-12-K-P5
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
120
Package Type:
Box
PFC:
No
Power:
6 W
Dimensions L x W x H:
64.1 x 40.5 x 30.0 mm
Minimum Load (Amps):
0
Operating Temperature:
0 to 40 °C
Ripple & Noise:
200 mV
Input Frequency:
47 to 63 Hz
MOPP:
Not App
Short Circuit Protection:
Yes
Over Voltage Protection:
Yes
AC Input Current - Typical:
Not Spec'd
Safety Approvals:
CCC, CE, cUL, GS, PSE, RCM, TUV, UL
Maximum Input Current:
0.3 A
Safety Class:
None
Input Connector Type:
Interchangeable-Order Separately
CoC Tier:
2
Output Connector Type:
Barrel - Female
Output Cord Length:
1.83m (72.1in)
AC Input Voltage:
90 to 264
AC Input Current - Maximum:
0.3A
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Typical Inrush Current:
Not Spec'd
Line Regulation:
1.00 %
Minimum Isolation Voltage:
4242Vdc/3000Vac
Thermal Protection:
No
Grade:
Commercial
Load Regulation:
5.00 %
Overload Protection:
No
Efficiency:
Not Spec'd
Output Type:
Fixed
Style:
Interchangeable WallMount
Minimum DC Input Voltage:
Not App
DC Input Voltage:
Not App
Mounting Style:
External
Dimensions LxWxH:
2.52 x 1.594 x 1.181 in
Number of Outputs:
1
Power Rating:
6 W
Adapter Color:
Black
Output Connector Diameters:
2.1 x 5.5 mm
Input Voltage:
90 to 264Vac
Typical Hold-Up Time:
Not Spec'd
Minimum Input Voltage:
90Vac
Power Indicator:
No
Maximum AC Input Voltage:
264
Maximum Output Current:
0.5 A
Output Connector Polarity:
Center Positive
Dimension:
64.1 x 40.5 x 30 mm
Maximum DC Input Voltage:
Not App
Maximum Output Power:
6 W
Maximum Input Voltage:
264Vac
Output Voltage:
12 VDC
Input/Output Type:
AC/DC
Mounting:
External
Output Current:
0.5 A
Family:
SMI6
Minimum AC Input Voltage:
90
Output Connector Angle:
Straight
DOE Efficiency Level:
VI
Dimensions L x W x H(in):
2.52 x 1.60 x 1.19 in
Type:
Regulated-Switching
Package Type:
Wall Plug
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - Watts: 12V @ 0.5A ++ NO AC INPUT BLADES ++ Lvl VI/T2
Search Keywords:
SMI612KP5
  This product is not in stock and cannot be back-ordered
MOQ for out of Stock Qty:
270
Please Note: Tariffs may apply for U.S. shipments

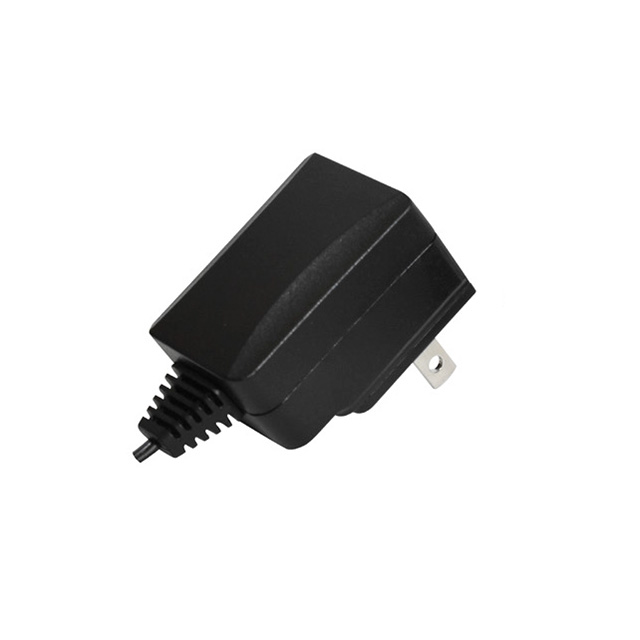

RECOMMENDED REPLACEMENT
SMI6B-12-K-P5
SMI6B-12-K-P5
