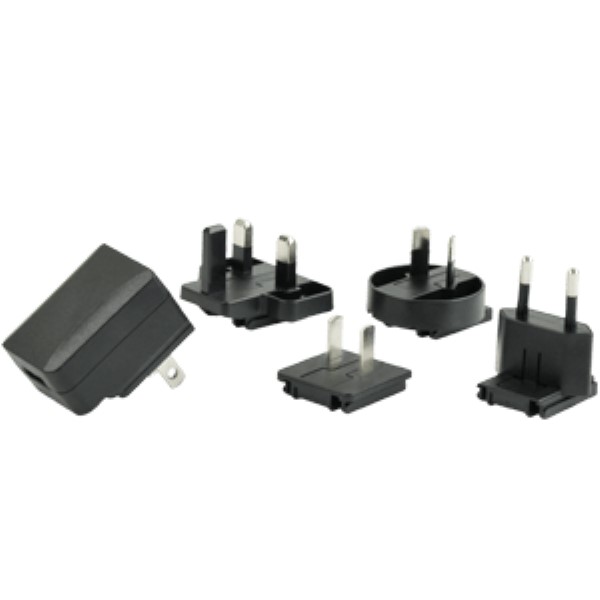

Image is representational - see mfr. specs

SMI5-5-V-I38

AC/DC Adapter - Wall Mount - 5 Watts: 5V @ 1A - USB A Jack - AU_CN_EU_NA_UK Input Blades Kit - Lvl VI/T2 .. see full description

RoHS Compliant

Box Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

CUI Inc.

Part No:

SMI5-5-V-I38

RoHS:

Yes

HTS:

8504409510

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

120

Package Type:

Box

Output Connector Diameters:

Not App

Power:

5 W

Line Regulation:

5.00 %

Mounting Style:

External

Maximum AC Input Voltage:

264

Special Features:

CoC Tier 2 Compliant, DoE Level VI Efficiency

DOE Efficiency Level:

Short Circuit Protection:

Yes

Output Voltage:

5 VDC

Load Regulation:

5.00 %

Adapter Color:

Black

Dimensions LxWxH:

1.85 x 1.358 x 1.043 in

Efficiency:

Not Spec'd

Minimum Isolation Voltage:

4242Vdc/3000Vac

Grade:

Commercial

Mounting:

External

Maximum Input Voltage:

264Vac

Power Indicator:

AC Input Current - Typical:

Not Spec'd

AC Input Current - Maximum:

0.2A

PFC:

Number of Outputs:

Output Connector Angle:

Not App

DC Input Voltage:

Not App

Input Frequency:

47 to 63 Hz

CoC Tier:

Maximum Output Power:

5 W

Overload Protection:

Yes

Input Connector Type:

Interchangeable-Kit

Output Type:

Fixed

Dimensions L x W x H(in):

1.85 x 1.36 x 1.05 in

Ripple & Noise:

300 mV

Maximum Output Current:

1.0 A

Maximum DC Input Voltage:

Not App

Typical Hold-Up Time:

Not Spec'd

Input/Output Type:

AC/DC

MOPP:

Not App

Over Voltage Protection:

Yes

Output Cord Length:

Not App

Power Rating:

5 W

Thermal Protection:

Package Type:

Wall Plug

Typical Inrush Current:

Not Spec'd

Minimum AC Input Voltage:

Minimum DC Input Voltage:

Not App

Safety Class:

None

AC Input Voltage:

90 to 264

Dimensions L x W x H:

47.0 x 34.5 x 26.5 mm

Family:

SMI5-USB

Dimension:

47 x 34.5 x 26.5 mm

Output Current:

1.0 A

Output Connector Type:

USB - A Jack

Type:

Regulated-Switching

Safety Approvals:

CCC, CE, cUL, GS, PSE, RCM, TUV, UL

Maximum Input Current:

0.2 A

Minimum Input Voltage:

90Vac

Input Voltage:

90 to 264Vac

Output Connector Polarity:

Not App

Minimum Load (Amps):

Style:

Interchangeable WallMount

Operating Temperature:

0 to 40 °C

The CUI Inc part SMI5-5-V-I38 is a high-quality AC/DC adapter designed for wall mounting applications. With a power output of 5 watts, it provides a stable 5V current at 1A, making it ideal for charging and powering various devices. The adapter features a USB A jack, allowing easy connectivity with USB devices. It comes with an input blades kit that includes blades compatible with power outlets in Australia, China, Europe, North America, and the UK. The adapter is compliant with Level VI/Tier 2 energy efficiency standards, ensuring low standby power consumption and high efficiency.

Product Highlights:

Potential Applications:

Search Keywords:

SMI55VI38

This product is not in stock and cannot be back-ordered

This product is discontinued, but still in stock

This product has been discontinued by the supplier

Different packaging options available. See Alternatives

Possible Replacement options available. See Alternatives

This product is NOT RoHS Compliant. See Alternatives

End of Life: Final orders must be placed by

IN STOCK: 0

BONDED Quantity:

Manufacturer Stock:

0 can ship

On Order:

Stock lot only:

Minimum Order Quantity:

MOQ for out of Stock Qty:

Multiple:

Factory Lead-Time

17 Weeks can ship

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

VIEW PRODUCT

Min quantity should be greater than or equal () in order to activate the custom price. Otherwise you will get the normal price.

Price (USD)

Quantity

Unit Price

Ext. Price

$10.43

$52.15

$8.98

$224.50

$8.63

$431.50

120

$8.07

$968.40

360

$7.86

$2,829.60

600

$7.78

$4,668.00

1,080 +

$7.74

$8,359.20

Suppliers Standard Package

Standard Packaging

Standard packaging is the minimum package size Eccoconnectors.com receives from the supplier. The minimum order quantity might be less than the supplier's standard packaging. The type of packaging (such as reel, tube, tray) may be subject to change when the product is divided into smaller quantities.
