SMI18-15-V-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SMI18-15-V-P5

CUI Inc.

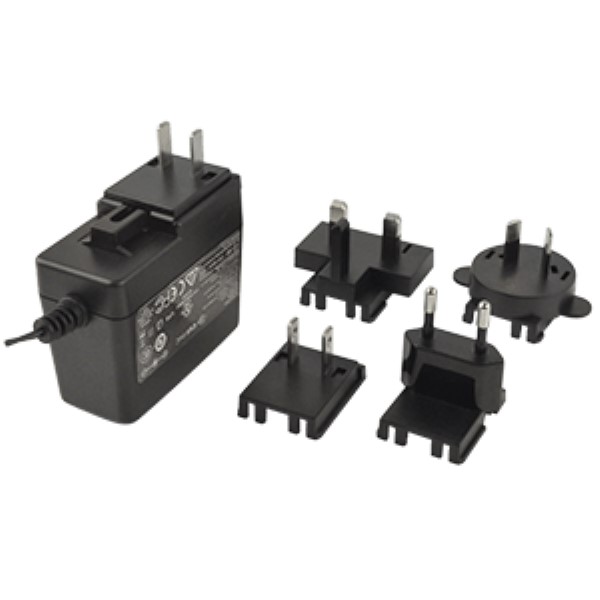

AC/DC Adapter - Wall Mount - 19.5 Watts: 15V @ 1.3A - AU_CN_EU_NA_UK Input Blades Kit - Lvl VI/T2 .. see full description

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SMI18-15-V-P5
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
Box
Short Circuit Protection:
Yes
Maximum AC Input Voltage:
264
CoC Tier:
2
Power:
19.5 W
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Load Regulation:
5.00 %
Number of Outputs:
1
Efficiency:
Not Spec'd
Minimum Isolation Voltage:
3000Vac
Dimensions L x W x H:
75.0 x 35.8 x 65.6 mm
Grade:
Commercial
Maximum Input Voltage:
264Vac
Mounting:
External
Maximum DC Input Voltage:
Not App
Adapter Color:
Black
Output Current:
1.3 A
Line Regulation:
5.00 %
MOPP:
Not App
Output Connector Angle:
Straight
PFC:
No
Output Voltage:
15 VDC
DOE Efficiency Level:
VI
Input Connector Type:
Interchangeable-Kit
AC Input Current - Typical:
Not Spec'd
Power Indicator:
No
Minimum AC Input Voltage:
90
Input/Output Type:
AC/DC
DC Input Voltage:
Not App
Ripple & Noise:
150 mV
Family:
SMI18
Maximum Input Current:
Not Spec'd
Dimensions LxWxH:
2.953 x 1.409 x 2.583 in
AC Input Current - Maximum:
0.48A
Safety Class:
None
Type:
Regulated-Switching
Minimum Load (Amps):
0
Output Type:
Fixed
Typical Hold-Up Time:
10ms(Min)
Mounting Style:
External
Dimension:
75 x 35.8 x 65.6 mm
Overload Protection:
Yes
Output Connector Diameters:
2.1 x 5.5 mm
Output Connector Type:
Barrel - Female
Style:
Interchangeable WallMount
Package Type:
Wall Plug
Input Voltage:
90 to 264Vac
Maximum Output Current:
1.3 A
Output Cord Length:
1.5m (59.1in)
Dimensions L x W x H(in):
2.97 x 1.41 x 2.59 in
Input Frequency:
47 to 63 Hz
Safety Approvals:
CCC, CE, cUL, PSE, RCM, UL
Output Connector Polarity:
Center Positive
AC Input Voltage:
90 to 264
Typical Inrush Current:
50/60A(Max) at 100/230Vac
Operating Temperature:
0 to 40 °C
Thermal Protection:
No
Minimum Input Voltage:
90Vac
Minimum DC Input Voltage:
Not App
Maximum Output Power:
19.5 W
Power Rating:
19.5 W
Over Voltage Protection:
Yes
The CUI INC. SMI18-15-V-P5 is a reliable and efficient AC/DC adapter designed for wall mounting. With a power output of 19.5 Watts delivering 15V @ 1.3A, this adapter comes equipped with input blades kit suitable for use in Australia, China, Europe, North America, and the United Kingdom. This adapter meets Level VI/Tier 2 performance standards, ensuring energy efficiency and compliance with the latest regulations. Ideal for a wide range of electronic devices, the SMI18-15-V-P5 is a versatile solution for your power supply needs.
Search Keywords:
SMI1815VP5
IN STOCK: 0
MOQ for out of Stock Qty:
135
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$23.99
$23.99
25
$18.27
$456.75
50
$17.74
$887.00
100
$17.04
$1,704.00
135
$16.79
$2,266.65
270
$16.57
$4,473.90
405
$16.35
$6,621.75
540 +
$16.27
$8,785.80
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
