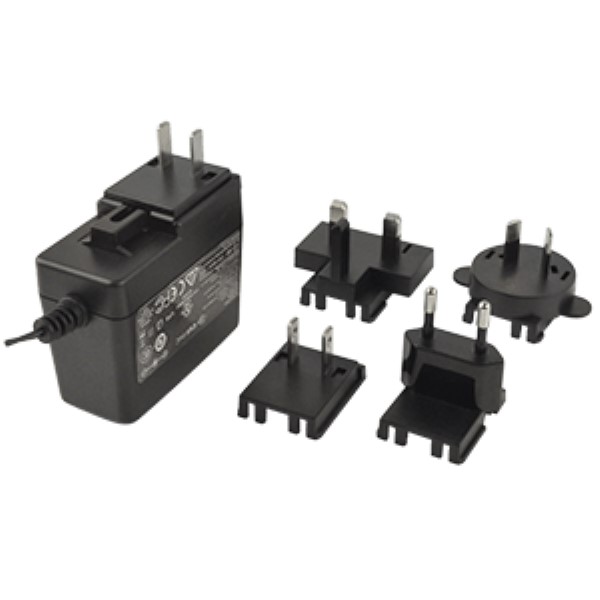

SMI18-12-V-P5R by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SMI18-12-V-P5R

CUI Inc.

AC/DC Adapter - Wall Mount - 19.2 Watts: 12V @ 1.6A - AU_CN_EU_NA_UK Input Blades Kit - Lvl VI/T2 .. see full description

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SMI18-12-V-P5R
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
Box
Minimum Isolation Voltage:
3000Vac
DC Input Voltage:
Not App
Minimum Load (Amps):
0
MOPP:
Not App
Type:
Regulated-Switching
Ripple & Noise:
120 mV
Output Connector Diameters:
2.1 x 5.5 mm
Input Voltage:
90 to 264Vac
Input Frequency:
47 to 63 Hz
Maximum Output Power:
19 W
Input/Output Type:
AC/DC
Dimensions L x W x H:
75.0 x 35.8 x 65.6 mm
Over Voltage Protection:
Yes
Style:
Interchangeable WallMount
Typical Hold-Up Time:
10ms(Min)
Mounting Style:
External
Maximum AC Input Voltage:
264
Package Type:
Wall Plug
DOE Efficiency Level:
VI
Maximum Input Voltage:
264Vac
Grade:
Commercial
Minimum AC Input Voltage:
90
Dimension:
75 x 35.8 x 65.6 mm
Minimum Input Voltage:
90Vac
Output Connector Type:
Barrel - Female
Output Type:
Fixed
Number of Outputs:
1
Load Regulation:
5.00 %
Input Connector Type:
Interchangeable-Kit
Dimensions LxWxH:
2.953 x 1.409 x 2.583 in
Mounting:
External
Output Cord Length:
1.5m (59.1in)
Minimum DC Input Voltage:
Not App
AC Input Voltage:
90 to 264
Efficiency:
Not Spec'd
Operating Temperature:
0 to 40 °C
Family:
SMI18
Thermal Protection:
No
Safety Approvals:
CCC, CE, cUL, PSE, RCM, UL
Output Current:
1.6 A
AC Input Current - Typical:
Not Spec'd
Maximum DC Input Voltage:
Not App
Line Regulation:
5.00 %
Short Circuit Protection:
Yes
Output Voltage:
12 VDC
AC Input Current - Maximum:
0.48A
Power Indicator:
No
Overload Protection:
Yes
Output Connector Polarity:
Center Positive
Power Rating:
19 W
Maximum Output Current:
1.6 A
Typical Inrush Current:
50/60A(Max) at 100/230Vac
Power:
19 W
Safety Class:
None
Adapter Color:
Black
Maximum Input Current:
Not Spec'd
Dimensions L x W x H(in):
2.97 x 1.41 x 2.59 in
CoC Tier:
2
Output Connector Angle:
Right Angle
PFC:
No
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
The CUI Inc part SMI18-12-V-P5R is a versatile AC/DC adapter designed for wall mount applications. With a power output of 19.2 Watts, it provides a reliable and efficient power source for various devices. The adapter delivers a voltage of 12V at 1.6A, ensuring stable performance. It comes with an AU, CN, EU, NA, and UK input blades kit, making it suitable for use in different regions. The adapter is compliant with Level VI/Tier 2 energy efficiency regulations, offering low power consumption and environmentally friendly operation.
Search Keywords:
SMI1812VP5R
IN STOCK: 0
MOQ for out of Stock Qty:
135
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$49.95
$49.95
25
$49.20
$1,230.00
50
$48.46
$2,423.00
100
$47.73
$4,773.00
135
$47.02
$6,347.70
270
$24.81
$6,698.70
405
$17.07
$6,913.35
540 +
$16.72
$9,028.80
Please Note: Tariffs may apply for U.S. shipments
