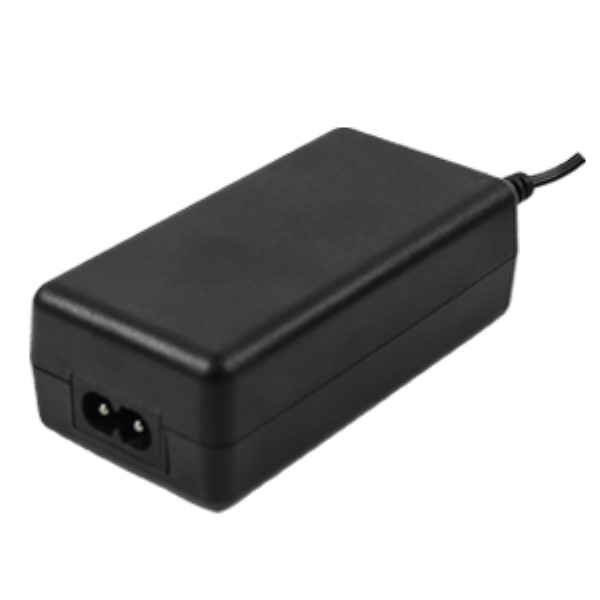

SDM36-15-UD-P6R by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDM36-15-UD-P6R

CUI Inc.

AC/DC Adapter - Desktop - 36 Watts: 15V @ 2.4A - Medical - C14 Input - Lvl VI

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDM36-15-UD-P6R
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
Box
Typical Inrush Current:
70A(Max) at 230Vac
Input/Output Type:
AC/DC
Maximum Input Voltage:
264Vac
DC Input Voltage:
Not App
Style:
Desktop Adapter
Family:
SDM36-U
Power Rating:
36 W
Load Regulation:
5.00 %
Number of Outputs:
1
Short Circuit Protection:
Yes
Package Type:
Desktop
AC Input Current - Maximum:
1.0A
Efficiency:
Not Spec'd
Special Features:
DoE Level VI Efficiency
DOE Efficiency Level:
VI
Maximum Output Current:
2.4 A
Output Cord Length:
1.83m (72.1in)
Ripple & Noise:
150 mV
Safety Class:
None
Operating Temperature:
0 to 40 °C
Minimum Isolation Voltage:
4000Vac
Output Connector Diameters:
2.5 x 5.5 mm
Safety Approvals:
CE, cUL, PSE, TUV, UL
Output Current:
2.4 A
Output Connector Angle:
Right Angle
Dimensions LxWxH:
3.9 x 1.97 x 1.3 in
Power Indicator:
Yes
Dimensions L x W x H:
100.0 x 50.0 x 33.0 mm
Maximum Output Power:
36 W
PFC:
No
Thermal Protection:
No
Output Connector Polarity:
Center Positive
Maximum AC Input Voltage:
264
AC Input Current - Typical:
Not Spec'd
Input Voltage:
90 to 264Vac
Grade:
Medical
Output Connector Type:
Barrel - Female
Maximum DC Input Voltage:
Not App
Dimensions L x W x H(in):
3.90 x 1.97 x 1.30 in
Input Frequency:
47 to 63 Hz
Line Regulation:
5.00 %
Input Connector Type:
IEC 320-C14
Minimum Load (Amps):
0
AC Input Voltage:
90 to 264
Mounting Style:
External
Mounting:
External
Overload Protection:
Yes
Output Type:
Fixed
Typical Hold-Up Time:
Not Spec'd
MOPP:
No
Over Voltage Protection:
Yes
Adapter Color:
Black
Power:
36 W
Maximum Input Current:
1.0 A
Minimum AC Input Voltage:
90
Minimum Input Voltage:
90Vac
Type:
Regulated-Switching
Output Voltage:
15 VDC
Minimum DC Input Voltage:
Not App
CoC Tier:
No
Dimension:
100 x 50 x 33 mm
AC/DC Adapter - Desktop - 36 Watts: 15V @ 2.4A - Medical - C14 Input - Lvl VI
Search Keywords:
SDM3615UDP6R
IN STOCK: 0
MOQ for out of Stock Qty:
255
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
255
$49.92
$12,729.60
510
$25.50
$13,005.00
765
$17.36
$13,280.40
1,020 +
$17.01
$17,350.20
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
