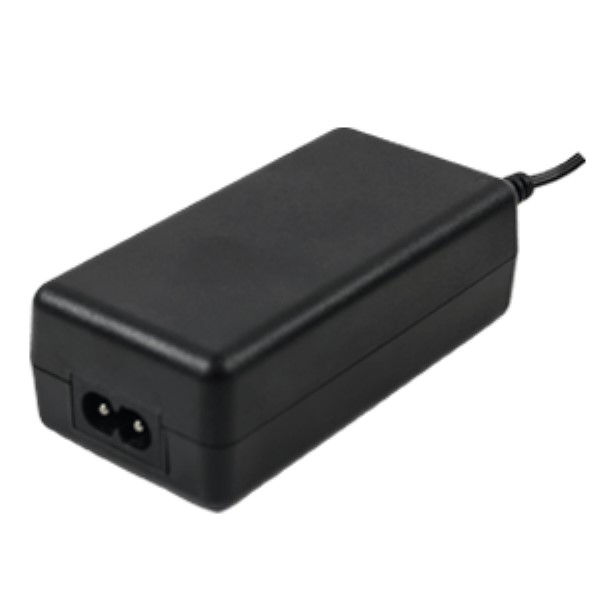

SDM36-12-UD-P6R by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDM36-12-UD-P6R

CUI Inc.

AC/DC Adapter - Desktop - 36 Watts: 12V @ 3A - C14 Input - Lvl VI

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDM36-12-UD-P6R
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
Box
Overload Protection:
Yes
MOPP:
No
Power:
36 W
Minimum AC Input Voltage:
90
Mounting:
External
Maximum Output Power:
36 W
Safety Class:
None
Maximum Input Current:
1.0 A
CoC Tier:
No
Package Type:
Desktop
Output Connector Diameters:
2.5 x 5.5 mm
Dimensions L x W x H(in):
3.90 x 1.97 x 1.30 in
Output Type:
Fixed
Mounting Style:
External
Grade:
Medical
Power Indicator:
Yes
Output Cord Length:
1.83m (72.1in)
Dimensions L x W x H:
100.0 x 50.0 x 33.0 mm
Type:
Regulated-Switching
Minimum DC Input Voltage:
Not App
AC Input Voltage:
90 to 264
DOE Efficiency Level:
VI
Dimension:
100 x 50 x 33 mm
Maximum Output Current:
3.0 A
Family:
SDM36-U
Minimum Isolation Voltage:
4000Vac
Typical Hold-Up Time:
Not Spec'd
Output Current:
3.0 A
DC Input Voltage:
Not App
Style:
Desktop Adapter
Number of Outputs:
1
Thermal Protection:
No
Efficiency:
Not Spec'd
Operating Temperature:
0 to 40 °C
Input Voltage:
90 to 264Vac
Input/Output Type:
AC/DC
Over Voltage Protection:
Yes
Power Rating:
36 W
Minimum Input Voltage:
90Vac
Ripple & Noise:
120 mV
Typical Inrush Current:
70A(Max) at 230Vac
Output Connector Type:
Barrel - Female
Maximum AC Input Voltage:
264
Load Regulation:
5.00 %
Output Connector Angle:
Right Angle
Safety Approvals:
CE, cUL, PSE, TUV, UL
Input Frequency:
47 to 63 Hz
Output Voltage:
12 VDC
Maximum DC Input Voltage:
Not App
Line Regulation:
5.00 %
Short Circuit Protection:
Yes
PFC:
No
AC Input Current - Typical:
Not Spec'd
Input Connector Type:
IEC 320-C14
AC Input Current - Maximum:
1.0A
Dimensions LxWxH:
3.9 x 1.97 x 1.3 in
Minimum Load (Amps):
0
Special Features:
DoE Level VI Efficiency
Output Connector Polarity:
Center Positive
Adapter Color:
Black
Maximum Input Voltage:
264Vac
AC/DC Adapter - Desktop - 36 Watts: 12V @ 3A - C14 Input - Lvl VI
Search Keywords:
SDM3612UDP6R
IN STOCK: 0
MOQ for out of Stock Qty:
255
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
255
$49.92
$12,729.60
510
$25.50
$13,005.00
765
$17.36
$13,280.40
1,020 +
$17.01
$17,350.20
