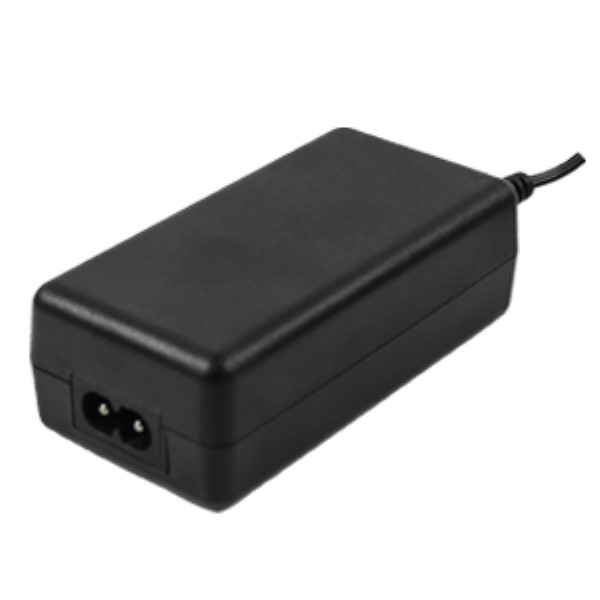

SDM36-12-UD-P6 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDM36-12-UD-P6

CUI Inc.

AC/DC Adapter - Desktop - 36 Watts: 12V @ 3A - C14 Input - Lvl VI

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDM36-12-UD-P6
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
Box
CoC Tier:
No
Short Circuit Protection:
Yes
PFC:
No
Minimum DC Input Voltage:
Not App
Dimensions LxWxH:
3.9 x 1.97 x 1.3 in
Power Rating:
36 W
AC Input Current - Typical:
Not Spec'd
Minimum Isolation Voltage:
4000Vac
Output Cord Length:
1.83m (72.1in)
Operating Temperature:
0 to 40 °C
Load Regulation:
5.00 %
AC Input Current - Maximum:
1.0A
Special Features:
DoE Level VI Efficiency
Maximum Input Voltage:
264Vac
Maximum DC Input Voltage:
Not App
Output Type:
Fixed
Line Regulation:
5.00 %
Input Frequency:
47 to 63 Hz
Mounting Style:
External
Family:
SDM36-U
Thermal Protection:
No
Number of Outputs:
1
Type:
Regulated-Switching
Minimum Load (Amps):
0
Output Connector Polarity:
Center Positive
Maximum Output Current:
3.0 A
Style:
Desktop Adapter
Dimensions L x W x H:
100.0 x 50.0 x 33.0 mm
Dimensions L x W x H(in):
3.90 x 1.97 x 1.30 in
Maximum AC Input Voltage:
264
Dimension:
100 x 50 x 33 mm
Safety Approvals:
CE, cUL, PSE, TUV, UL
Safety Class:
None
AC Input Voltage:
90 to 264
Input Voltage:
90 to 264Vac
Minimum Input Voltage:
90Vac
Typical Inrush Current:
70A(Max) at 230Vac
Adapter Color:
Black
Output Voltage:
12 VDC
Over Voltage Protection:
Yes
Package Type:
Desktop
Grade:
Medical
Maximum Output Power:
36 W
Minimum AC Input Voltage:
90
Output Connector Angle:
Straight
Input/Output Type:
AC/DC
DOE Efficiency Level:
VI
MOPP:
No
Power Indicator:
Yes
Ripple & Noise:
120 mV
Output Current:
3.0 A
Power:
36 W
Mounting:
External
Overload Protection:
Yes
Typical Hold-Up Time:
Not Spec'd
Input Connector Type:
IEC 320-C14
DC Input Voltage:
Not App
Efficiency:
Not Spec'd
Output Connector Diameters:
2.5 x 5.5 mm
Maximum Input Current:
1.0 A
Output Connector Type:
Barrel - Female
AC/DC Adapter - Desktop - 36 Watts: 12V @ 3A - C14 Input - Lvl VI
Search Keywords:
SDM3612UDP6
IN STOCK: 0
MOQ for out of Stock Qty:
255
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
255
$49.92
$12,729.60
510
$25.50
$13,005.00
765
$17.36
$13,280.40
1,020 +
$17.01
$17,350.20
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
