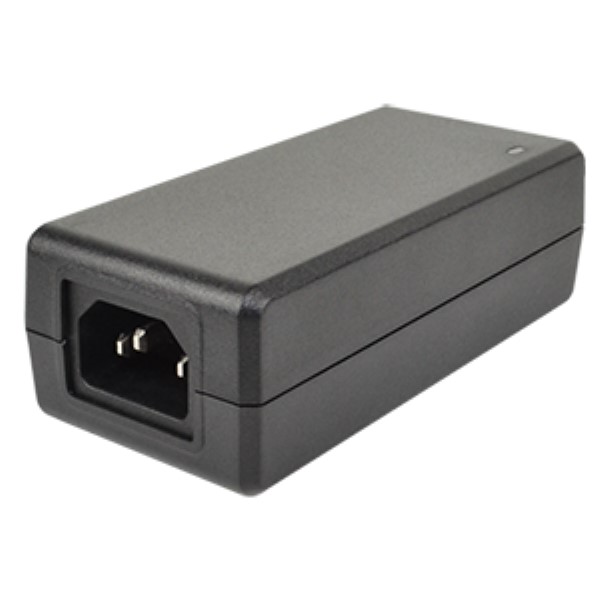

SDI65-24-UC-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDI65-24-UC-P5

CUI Inc.

AC/DC Adapter - Desktop - 65 Watts: 24V @ 2.71A - C14 Input - Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDI65-24-UC-P5
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
30
Package Type:
Box
Thermal Protection:
No
Output Connector Polarity:
Center Positive
Dimension:
115 x 53 x 38 mm
Safety Class:
None
Input Connector Type:
IEC 320-C14
AC Input Current - Typical:
Not Spec'd
Maximum Output Power:
65 W
Input Frequency:
47 to 63 Hz
Grade:
Commercial
Output Connector Type:
Barrel - Female
Output Current:
2.71 A
Maximum Input Voltage:
264Vac
Input Voltage:
90 to 264Vac
Minimum Load (Amps):
0
Output Connector Diameters:
2.1 x 5.5 mm
Minimum AC Input Voltage:
90
Maximum Output Current:
2.71 A
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Output Type:
Fixed
Overload Protection:
Yes
Adapter Color:
Black
DOE Efficiency Level:
VI
Over Voltage Protection:
Yes
Short Circuit Protection:
Yes
Typical Hold-Up Time:
Not Spec'd
CoC Tier:
2
Dimensions L x W x H:
115.0 x 53.0 x 38.0 mm
Output Cord Length:
1.5m (59.1in)
Dimensions L x W x H(in):
4.53 x 2.09 x 1.50 in
PFC:
No
Type:
Regulated-Switching
AC Input Current - Maximum:
1.0A
Typical Inrush Current:
80A(Max) at 240Vac
Package Type:
Desktop
Operating Temperature:
0 to 40 °C
Power:
65 W
Power Indicator:
Yes
Mounting Style:
External
Minimum Isolation Voltage:
3000Vac
Input/Output Type:
AC/DC
Ripple & Noise:
240 mV
Safety Approvals:
CE, cUL, GS, NEMKO, PSE, TUV, UL
Maximum DC Input Voltage:
Not App
Minimum Input Voltage:
90Vac
Power Rating:
65 W
DC Input Voltage:
Not App
Line Regulation:
5.00 %
Number of Outputs:
1
Load Regulation:
5.00 %
Efficiency:
Not Spec'd
Mounting:
External
Dimensions LxWxH:
4.528 x 2.087 x 1.496 in
Minimum DC Input Voltage:
Not App
Family:
SDI65-U
Output Voltage:
24 VDC
Maximum AC Input Voltage:
264
AC Input Voltage:
90 to 264
MOPP:
Not App
Maximum Input Current:
Not Spec'd
Output Connector Angle:
Straight
Style:
Desktop Adapter
AC/DC Adapter - Desktop - 65 Watts: 24V @ 2.71A - C14 Input - Lvl VI/T2
Search Keywords:
SDI6524UCP5
IN STOCK: 0
MOQ for out of Stock Qty:
128
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
128
$74.00
$9,472.00
255
$37.94
$9,674.70
383
$25.79
$9,877.57
510 +
$25.28
$12,892.80
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
