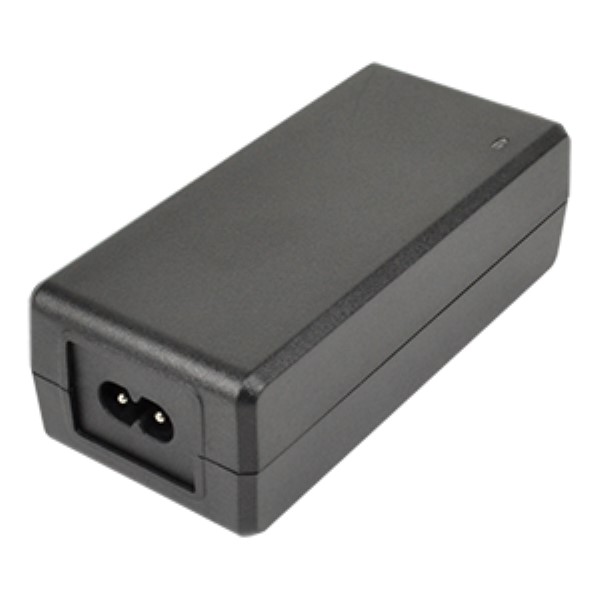

SDI65-19-UDC-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDI65-19-UDC-P5

CUI Inc.

AC/DC Adapter - Desktop - 65 Watts: 19V @ 3.43A - C14 Input - Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDI65-19-UDC-P5
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
30
Package Type:
Box
Minimum Isolation Voltage:
3000Vac
Minimum Load (Amps):
0
Type:
Regulated-Switching
AC Input Current - Typical:
Not Spec'd
MOPP:
Not App
Typical Hold-Up Time:
Not Spec'd
Output Connector Type:
Barrel - Female
Over Voltage Protection:
Yes
Power:
65 W
Minimum DC Input Voltage:
Not App
PFC:
No
CoC Tier:
2
Typical Inrush Current:
80A(Max) at 240Vac
Safety Approvals:
CE, cUL, GS, NEMKO, PSE, TUV, UL
Output Current:
3.43 A
Adapter Color:
Black
Mounting:
External
Maximum Output Power:
65 W
Dimensions L x W x H(in):
4.53 x 2.09 x 1.50 in
Dimensions L x W x H:
115.0 x 53.0 x 38.0 mm
Family:
SDI65-U
Grade:
Commercial
Package Type:
Desktop
Safety Class:
None
Number of Outputs:
1
DOE Efficiency Level:
VI
Output Type:
Fixed
Power Indicator:
Yes
DC Input Voltage:
Not App
Overload Protection:
Yes
AC Input Current - Maximum:
1.0A
Minimum Input Voltage:
90Vac
Load Regulation:
5.00 %
Maximum Input Voltage:
264Vac
Input/Output Type:
AC/DC
Efficiency:
Not Spec'd
Maximum Input Current:
Not Spec'd
Thermal Protection:
No
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Input Voltage:
90 to 264Vac
Maximum AC Input Voltage:
264
Line Regulation:
5.00 %
Operating Temperature:
0 to 40 °C
Output Voltage:
19 VDC
Dimension:
115 x 53 x 38 mm
Maximum DC Input Voltage:
Not App
Output Connector Diameters:
2.1 x 5.5 mm
Output Cord Length:
1.5m (59.1in)
Power Rating:
65 W
Minimum AC Input Voltage:
90
Maximum Output Current:
3.43 A
Mounting Style:
External
Ripple & Noise:
190 mV
Dimensions LxWxH:
4.528 x 2.087 x 1.496 in
Input Connector Type:
IEC 320-C14
Output Connector Polarity:
Center Positive
Input Frequency:
47 to 63 Hz
AC Input Voltage:
90 to 264
Short Circuit Protection:
Yes
Output Connector Angle:
Straight
Style:
Desktop Adapter
AC/DC Adapter - Desktop - 65 Watts: 19V @ 3.43A - C14 Input - Lvl VI/T2
Search Keywords:
SDI6519UDCP5
IN STOCK: 0
MOQ for out of Stock Qty:
128
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
128
$67.45
$8,633.60
255
$35.74
$9,113.70
383
$24.55
$9,402.65
510 +
$24.06
$12,270.60
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
