Image is representational - see mfr. specs

DATA SHEET

SDI65-12-U-P5

CUI Inc.

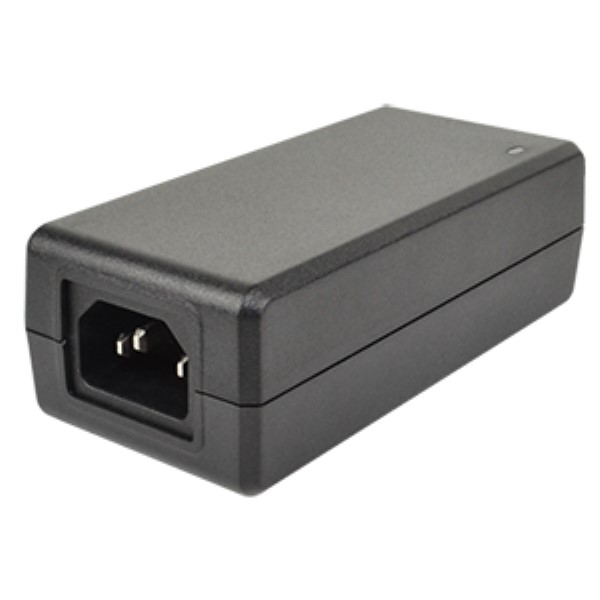

AC/DC Adapter - Desktop - 60 Watts: 12V @ 5 A - C14 Input - Lvl VI/T2 .. see full description

RoHS Compliant

Box Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

CUI Inc.

Part No:

SDI65-12-U-P5

RoHS:

Yes

HTS:

8504409520

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Package Type:

Box

Dimensions L x W x H:

115.0 x 53.0 x 38.0 mm

Input Voltage:

90 to 264Vac

Output Cord Length:

1.5m (59.1in)

MOPP:

Not App

Minimum Isolation Voltage:

3000Vac

Maximum Output Current:

5.0 A

Ripple & Noise:

120 mV

AC Input Voltage:

90 to 264

DOE Efficiency Level:

Type:

Regulated-Switching

Minimum Input Voltage:

90Vac

Mounting Style:

External

Output Connector Diameters:

2.1 x 5.5 mm

Input Frequency:

47 to 63 Hz

Output Current:

5.0 A

AC Input Current - Typical:

Not Spec'd

Overload Protection:

Yes

Input/Output Type:

AC/DC

Power Rating:

60 W

Dimensions L x W x H(in):

4.53 x 2.09 x 1.50 in

Operating Temperature:

0 to 40 °C

Output Connector Polarity:

Center Positive

Typical Inrush Current:

80A(Max) at 240Vac

Power:

60 W

Dimensions LxWxH:

4.528 x 2.087 x 1.496 in

Typical Hold-Up Time:

Not Spec'd

Safety Approvals:

CE, cUL, GS, NEMKO, PSE, TUV, UL

Minimum AC Input Voltage:

Minimum Load (Amps):

Maximum Output Power:

60 W

Over Voltage Protection:

Yes

Output Connector Angle:

Straight

Adapter Color:

Black

Maximum DC Input Voltage:

Not App

Family:

SDI65-U

Output Voltage:

12 VDC

Minimum DC Input Voltage:

Not App

Power Indicator:

Yes

Safety Class:

None

Load Regulation:

5.00 %

Maximum Input Current:

Not Spec'd

DC Input Voltage:

Not App

Style:

Desktop Adapter

Output Connector Type:

Barrel - Female

Output Type:

Fixed

Thermal Protection:

Dimension:

115 x 53 x 38 mm

Package Type:

Desktop

Input Connector Type:

IEC 320-C14

Mounting:

External

Maximum AC Input Voltage:

264

Special Features:

CoC Tier 2 Compliant, DoE Level VI Efficiency

Line Regulation:

5.00 %

CoC Tier:

Number of Outputs:

Short Circuit Protection:

Yes

PFC:

Grade:

Commercial

Maximum Input Voltage:

264Vac

AC Input Current - Maximum:

1.0A

Efficiency:

Not Spec'd

The CUI Inc SDI65-12-U-P5 AC/DC Adapter is a reliable and efficient power supply solution designed for desktop use. With a power output of 60 Watts, it provides a stable 12V DC at 5 Amps. The adapter features a C14 input connector and complies with Level VI energy efficiency standards, ensuring minimum power wastage. Its T2 thermal rating further guarantees safe and optimal performance. Perfect for a range of applications, this compact and durable adapter delivers high-quality power to your devices.
