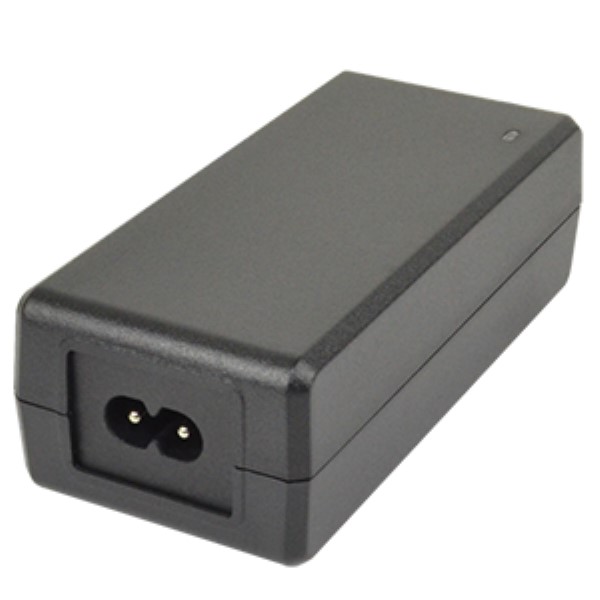

SDI50-24-UDC-P5R by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDI50-24-UDC-P5R

CUI Inc.

AC/DC Adapter - Desktop - 50 Watts: 24V @ 2.1A - C14 Input - Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDI50-24-UDC-P5R
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
30
Package Type:
Box
Family:
SDO50-U
Output Cord Length:
1.5m (59.1in)
Minimum Load (Amps):
0
Maximum Output Current:
2.1 A
Maximum Input Current:
Not Spec'd
Minimum Isolation Voltage:
3000Vac
Maximum Output Power:
50 W
Output Current:
2.1 A
Mounting Style:
External
Maximum AC Input Voltage:
264
Maximum DC Input Voltage:
Not App
Output Connector Polarity:
Center Positive
Power Rating:
50 W
Output Type:
Fixed
Output Connector Type:
Barrel - Female
Dimensions L x W x H:
115.0 x 53.0 x 38.0 mm
Adapter Color:
Black
Dimension:
115 x 53 x 38 mm
PFC:
No
AC Input Current - Typical:
Not Spec'd
CoC Tier:
2
Safety Class:
None
Efficiency:
Not Spec'd
Minimum AC Input Voltage:
90
Load Regulation:
5.00 %
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
DC Input Voltage:
Not App
Overload Protection:
Yes
Power:
50 W
Thermal Protection:
No
Over Voltage Protection:
Yes
Style:
Desktop Adapter
Dimensions LxWxH:
4.528 x 2.087 x 1.496 in
Input/Output Type:
AC/DC
Ripple & Noise:
240 mV
Number of Outputs:
1
Maximum Input Voltage:
264Vac
Grade:
Commercial
Short Circuit Protection:
Yes
Dimensions L x W x H(in):
4.53 x 2.09 x 1.50 in
Typical Inrush Current:
70A(Max) at 230Vac
Mounting:
External
AC Input Voltage:
90 to 264
MOPP:
Not App
Output Connector Diameters:
2.1 x 5.5 mm
Input Frequency:
47 to 63 Hz
Power Indicator:
Yes
Input Connector Type:
IEC 320-C14
Typical Hold-Up Time:
Not Spec'd
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Package Type:
Desktop
Output Voltage:
24 VDC
Output Connector Angle:
Right Angle
Input Voltage:
90 to 264Vac
DOE Efficiency Level:
VI
Type:
Regulated-Switching
Line Regulation:
5.00 %
AC Input Current - Maximum:
1.2A
Operating Temperature:
0 to 40 °C
Minimum Input Voltage:
90Vac
Minimum DC Input Voltage:
Not App
AC/DC Adapter - Desktop - 50 Watts: 24V @ 2.1A - C14 Input - Lvl VI/T2
Search Keywords:
SDI5024UDCP5R
IN STOCK: 0
MOQ for out of Stock Qty:
128
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
128
$63.94
$8,184.32
255
$33.88
$8,639.40
383
$23.27
$8,912.41
510 +
$22.80
$11,628.00
