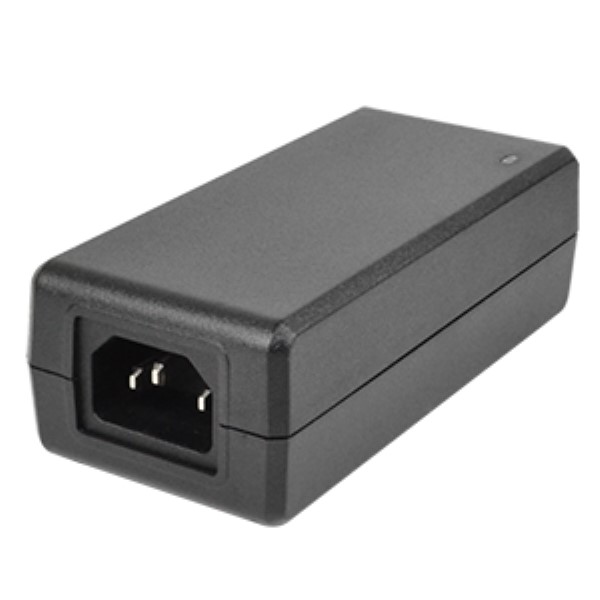

Image is representational - see mfr. specs

DATA SHEET

SDI50-12-U-P5

CUI Inc.

AC/DC Adapter - Desktop - 50 Watts: 12V @ 4.2A - C14 Input - Lvl VI/T2

RoHS Compliant

Box Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

CUI Inc.

Part No:

SDI50-12-U-P5

RoHS:

Yes

HTS:

8504409520

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Package Type:

Box

Input Connector Type:

IEC 320-C14

Over Voltage Protection:

Yes

Operating Temperature:

0 to 40 °C

AC Input Current - Typical:

Not Spec'd

Output Connector Type:

Barrel - Female

Dimensions L x W x H:

115.0 x 53.0 x 38.0 mm

Minimum Load (Amps):

Maximum Output Power:

50 W

Maximum Output Current:

4.2 A

Line Regulation:

5.00 %

Type:

Regulated-Switching

Dimensions LxWxH:

4.528 x 2.087 x 1.496 in

Output Connector Polarity:

Center Positive

Dimension:

115 x 53 x 38 mm

Thermal Protection:

Minimum AC Input Voltage:

Ripple & Noise:

120 mV

Output Connector Diameters:

2.1 x 5.5 mm

Input Voltage:

90 to 264Vac

Mounting Style:

External

Overload Protection:

Yes

Efficiency:

Not Spec'd

DOE Efficiency Level:

Package Type:

Desktop

Dimensions L x W x H(in):

4.53 x 2.09 x 1.50 in

MOPP:

Not App

Typical Hold-Up Time:

Not Spec'd

Output Type:

Fixed

Maximum DC Input Voltage:

Not App

AC Input Current - Maximum:

1.2A

Minimum Isolation Voltage:

3000Vac

Power Indicator:

Yes

Safety Approvals:

CE, cUL, GS, PSE, TUV, UL

DC Input Voltage:

Not App

Special Features:

CoC Tier 2 Compliant, DoE Level VI Efficiency

Typical Inrush Current:

70A(Max) at 230Vac

Style:

Desktop Adapter

Output Connector Angle:

Straight

Adapter Color:

Black

Safety Class:

None

Output Voltage:

12 VDC

Grade:

Commercial

Maximum Input Current:

Not Spec'd

Load Regulation:

5.00 %

Mounting:

External

Minimum DC Input Voltage:

Not App

Minimum Input Voltage:

90Vac

Number of Outputs:

Output Cord Length:

1.5m (59.1in)

Power:

50 W

Power Rating:

50 W

Maximum AC Input Voltage:

264

Input/Output Type:

AC/DC

PFC:

CoC Tier:

Maximum Input Voltage:

264Vac

Family:

SDO50-U

AC Input Voltage:

90 to 264

Output Current:

4.2 A

Input Frequency:

47 to 63 Hz

Short Circuit Protection:

Yes

AC/DC Adapter - Desktop - 50 Watts: 12V @ 4.2A - C14 Input - Lvl VI/T2

Product Highlights:

Potential Applications:

Search Keywords:

SDI5012UP5

This product is not in stock and cannot be back-ordered

This product is discontinued, but still in stock

This product has been discontinued by the supplier

Different packaging options available. See Alternatives

Possible Replacement options available. See Alternatives

This product is NOT RoHS Compliant. See Alternatives

End of Life: Final orders must be placed by

IN STOCK: 0

BONDED Quantity:

Manufacturer Stock:

0 can ship

On Order:

Stock lot only:

MOQ for out of Stock Qty:

Multiple:

Factory Lead-Time

21 Weeks can ship
