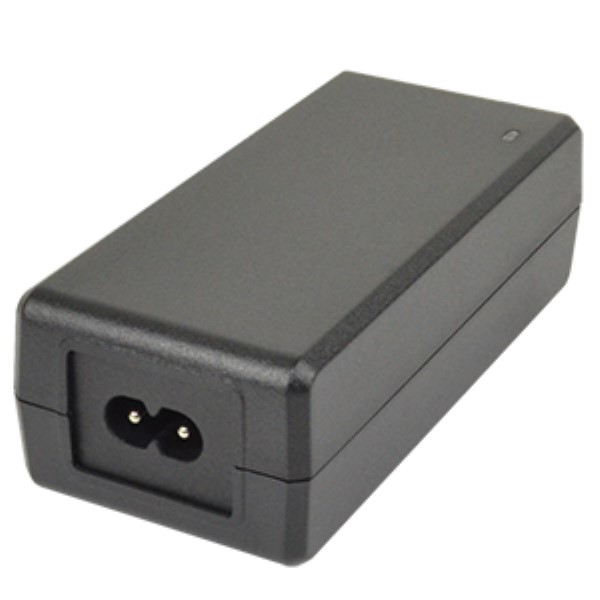

SDI50-12-UDC-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDI50-12-UDC-P5

CUI Inc.

AC/DC Adapter - Desktop - 50 Watts: 12V @ 4.2A - C14 Input - Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDI50-12-UDC-P5
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
30
Package Type:
Box
Efficiency:
Not Spec'd
PFC:
No
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Short Circuit Protection:
Yes
Input/Output Type:
AC/DC
DC Input Voltage:
Not App
Input Frequency:
47 to 63 Hz
Dimensions L x W x H(in):
4.53 x 2.09 x 1.50 in
Typical Inrush Current:
70A(Max) at 230Vac
Style:
Desktop Adapter
Output Connector Angle:
Straight
Dimensions L x W x H:
115.0 x 53.0 x 38.0 mm
Maximum DC Input Voltage:
Not App
MOPP:
Not App
Package Type:
Desktop
Mounting Style:
External
Input Connector Type:
IEC 320-C14
Output Connector Diameters:
2.1 x 5.5 mm
Type:
Regulated-Switching
Maximum AC Input Voltage:
264
Maximum Input Voltage:
264Vac
Minimum Load (Amps):
0
AC Input Voltage:
90 to 264
DOE Efficiency Level:
VI
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Power:
50 W
Typical Hold-Up Time:
Not Spec'd
Dimensions LxWxH:
4.528 x 2.087 x 1.496 in
Minimum DC Input Voltage:
Not App
Number of Outputs:
1
Power Indicator:
Yes
Power Rating:
50 W
Output Voltage:
12 VDC
Minimum AC Input Voltage:
90
Line Regulation:
5.00 %
Output Connector Polarity:
Center Positive
Input Voltage:
90 to 264Vac
Over Voltage Protection:
Yes
Overload Protection:
Yes
Output Current:
4.2 A
Maximum Output Current:
4.2 A
Thermal Protection:
No
Minimum Isolation Voltage:
3000Vac
CoC Tier:
2
Load Regulation:
5.00 %
Dimension:
115 x 53 x 38 mm
Minimum Input Voltage:
90Vac
Mounting:
External
AC Input Current - Maximum:
1.2A
Output Connector Type:
Barrel - Female
Adapter Color:
Black
Family:
SDO50-U
Output Type:
Fixed
Safety Class:
None
Ripple & Noise:
120 mV
Maximum Output Power:
50 W
Operating Temperature:
0 to 40 °C
Output Cord Length:
1.5m (59.1in)
Grade:
Commercial
AC Input Current - Typical:
Not Spec'd
Maximum Input Current:
Not Spec'd
AC/DC Adapter - Desktop - 50 Watts: 12V @ 4.2A - C14 Input - Lvl VI/T2
Search Keywords:
SDI5012UDCP5
IN STOCK: 0
MOQ for out of Stock Qty:
128
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
128
$65.98
$8,445.44
255
$34.96
$8,914.80
383
$24.01
$9,195.83
510 +
$23.53
$12,000.30
