SDI50-12-UC-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDI50-12-UC-P5

CUI Inc.

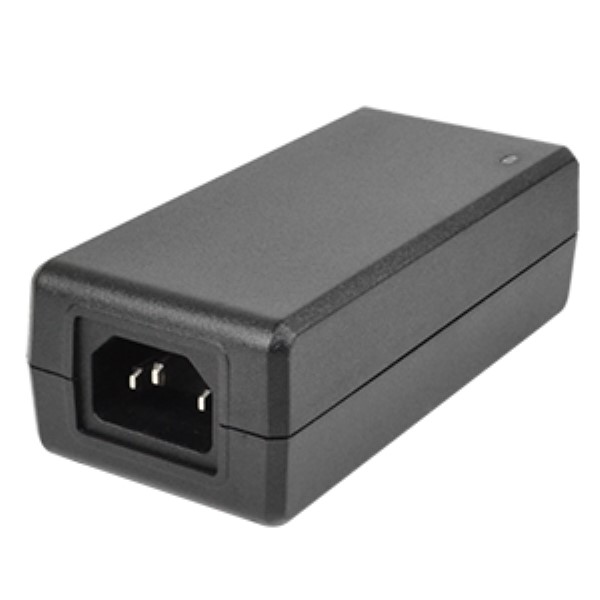

AC/DC Adapter - Desktop - 50 Watts: 12V @ 4.2A - C14 Input - Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDI50-12-UC-P5
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
30
Package Type:
Box
Minimum AC Input Voltage:
90
Line Regulation:
5.00 %
Maximum Output Power:
50 W
Output Connector Polarity:
Center Positive
Dimension:
115 x 53 x 38 mm
AC Input Current - Maximum:
1.2A
Dimensions L x W x H:
115.0 x 53.0 x 38.0 mm
Output Connector Type:
Barrel - Female
AC Input Voltage:
90 to 264
Output Current:
4.2 A
Maximum Input Current:
Not Spec'd
Output Connector Angle:
Straight
Family:
SDO50-U
Safety Class:
None
Minimum Input Voltage:
90Vac
Output Connector Diameters:
2.1 x 5.5 mm
DOE Efficiency Level:
VI
Type:
Regulated-Switching
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Maximum Input Voltage:
264Vac
Minimum Load (Amps):
0
Adapter Color:
Black
Input Frequency:
47 to 63 Hz
Package Type:
Desktop
Minimum DC Input Voltage:
Not App
Ripple & Noise:
120 mV
Over Voltage Protection:
Yes
PFC:
No
Operating Temperature:
0 to 40 °C
Power Rating:
50 W
Output Cord Length:
1.5m (59.1in)
Maximum DC Input Voltage:
Not App
Grade:
Commercial
Input Connector Type:
IEC 320-C14
Output Type:
Fixed
Load Regulation:
5.00 %
Mounting:
External
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
CoC Tier:
2
Typical Inrush Current:
70A(Max) at 230Vac
Dimensions L x W x H(in):
4.53 x 2.09 x 1.50 in
Input Voltage:
90 to 264Vac
AC Input Current - Typical:
Not Spec'd
MOPP:
Not App
Short Circuit Protection:
Yes
Power Indicator:
Yes
Input/Output Type:
AC/DC
DC Input Voltage:
Not App
Minimum Isolation Voltage:
3000Vac
Overload Protection:
Yes
Output Voltage:
12 VDC
Style:
Desktop Adapter
Maximum AC Input Voltage:
264
Typical Hold-Up Time:
Not Spec'd
Dimensions LxWxH:
4.528 x 2.087 x 1.496 in
Efficiency:
Not Spec'd
Maximum Output Current:
4.2 A
Power:
50 W
Mounting Style:
External
Thermal Protection:
No
Number of Outputs:
1
AC/DC Adapter - Desktop - 50 Watts: 12V @ 4.2A - C14 Input - Lvl VI/T2
Search Keywords:
SDI5012UCP5
IN STOCK: 0
MOQ for out of Stock Qty:
128
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
128
$70.11
$8,974.08
255
$37.15
$9,473.25
383
$25.51
$9,770.33
510 +
$25.00
$12,750.00
