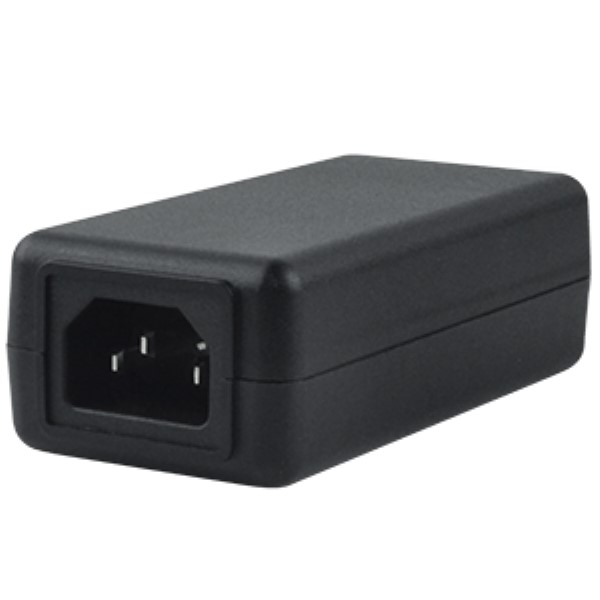

SDI18-5.9-UC-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDI18-5.9-UC-P5

CUI Inc.

AC/DC Adapter - Desktop - 17.7 Watts: 5.9V @ 3A - C14 Input - Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDI18-5.9-UC-P5
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
30
Package Type:
Box
Style:
Desktop Adapter
Package Type:
Desktop
Minimum DC Input Voltage:
Not App
Short Circuit Protection:
Yes
Load Regulation:
5.00 %
Number of Outputs:
1
CoC Tier:
2
Input/Output Type:
AC/DC
Input Connector Type:
IEC 320-C14
Efficiency:
Not Spec'd
DC Input Voltage:
Not App
Maximum Input Voltage:
264Vac
Grade:
Commercial
Minimum Load (Amps):
0
Power:
17.7 W
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Operating Temperature:
0 to 40 °C
Output Current:
3.0 A
Maximum Output Current:
3.0 A
MOPP:
Not App
Safety Class:
None
Dimensions L x W x H(in):
3.94 x 1.97 x 1.30 in
Dimensions LxWxH:
3.937 x 1.969 x 1.299 in
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Minimum Isolation Voltage:
3000Vac
Minimum AC Input Voltage:
90
Maximum Output Power:
17.7 W
Ripple & Noise:
100 mV
Input Voltage:
90 to 264Vac
Power Indicator:
No
Thermal Protection:
No
Power Rating:
17.7 W
Output Connector Type:
Barrel - Female
Mounting:
External
DOE Efficiency Level:
VI
Line Regulation:
5.00 %
Maximum DC Input Voltage:
Not App
Overload Protection:
Yes
Output Voltage:
5.9 Vdc
Type:
Regulated-Switching
Output Connector Angle:
Straight
AC Input Voltage:
90 to 264
Dimension:
100 x 50 x 33 mm
Family:
SDI18-U
AC Input Current - Maximum:
0.48A
Output Type:
Fixed
Typical Inrush Current:
50/60A(Max) at 100/230Vac
AC Input Current - Typical:
Not Spec'd
Dimensions L x W x H:
100.0 x 50.0 x 33.0 mm
Over Voltage Protection:
Yes
Maximum Input Current:
Not Spec'd
Input Frequency:
47 to 63 Hz
Output Cord Length:
1.2m (47.3in)
Adapter Color:
Black
Minimum Input Voltage:
90Vac
Maximum AC Input Voltage:
264
PFC:
No
Typical Hold-Up Time:
10ms(Min)
Mounting Style:
External
Output Connector Diameters:
2.1 x 5.5 mm
Output Connector Polarity:
Center Positive
AC/DC Adapter - Desktop - 17.7 Watts: 5.9V @ 3A - C14 Input - Lvl VI/T2
Search Keywords:
SDI1859UCP5
IN STOCK: 0
MOQ for out of Stock Qty:
128
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
128
$50.96
$6,522.88
255
$27.00
$6,885.00
383
$18.54
$7,100.82
510 +
$18.17
$9,266.70
