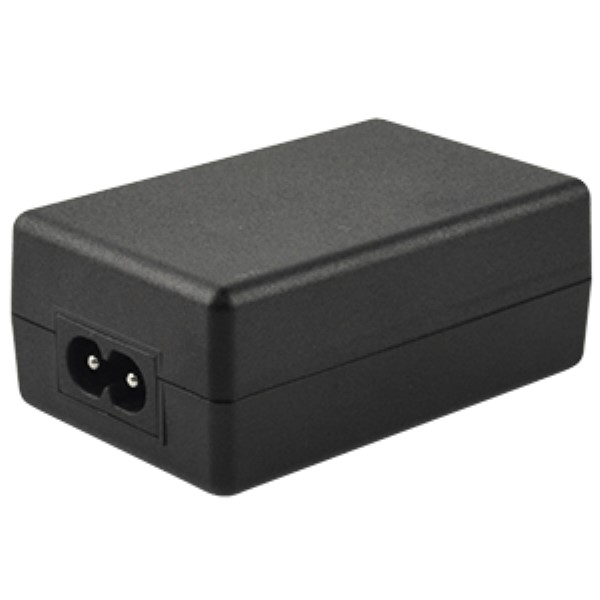

Image is representational - see mfr. specs

DATA SHEET

SDI12-5-UDC-P5

CUI Inc.

AC/DC Adapter - Desktop - 10 Watts: 5V @ 2A - C8 Input - Lvl VI/T2

RoHS Compliant

Box Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

CUI Inc.

Part No:

SDI12-5-UDC-P5

RoHS:

Yes

HTS:

8504409510

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Package Type:

Box

DOE Efficiency Level:

AC Input Current - Maximum:

0.31A

Typical Hold-Up Time:

Not Spec'd

Input Connector Type:

IEC 320-C8

Mounting Style:

External

Typical Inrush Current:

60A(Max) at 240Vac

Maximum Output Current:

2.0 A

Output Connector Angle:

Straight

Dimensions LxWxH:

2.953 x 1.87 x 1.075 in

Type:

Regulated-Switching

Short Circuit Protection:

Yes

Dimensions L x W x H(in):

2.96 x 1.87 x 1.08 in

Mounting:

External

Family:

SDI12-UD

Special Features:

CoC Tier 2 Compliant, DoE Level VI Efficiency

Output Voltage:

5 VDC

Adapter Color:

Black

Over Voltage Protection:

Yes

Minimum Load (Amps):

Maximum Input Current:

Not Spec'd

Overload Protection:

Yes

Safety Class:

None

Maximum Output Power:

10 W

Minimum AC Input Voltage:

Input Voltage:

90 to 264Vac

Output Connector Diameters:

2.1 x 5.5 mm

Power:

10 W

Minimum Isolation Voltage:

3000Vac

Number of Outputs:

Output Current:

2.0 A

Maximum AC Input Voltage:

264

Output Connector Type:

Barrel - Female

Power Rating:

10 W

Output Connector Polarity:

Center Positive

Dimension:

75 x 48 x 30 mm

Maximum Input Voltage:

264Vac

Grade:

Commercial

Efficiency:

Not Spec'd

Load Regulation:

5.00 %

Style:

Desktop Adapter

Package Type:

Desktop

PFC:

MOPP:

Not App

Input/Output Type:

AC/DC

Ripple & Noise:

100 mV

AC Input Voltage:

90 to 264

Output Cord Length:

1.5m (59.1in)

Operating Temperature:

0 to 40 °C

Input Frequency:

47 to 63 Hz

Minimum DC Input Voltage:

Not App

Minimum Input Voltage:

90Vac

Thermal Protection:

DC Input Voltage:

Not App

Dimensions L x W x H:

75.0 x 48.0 x 30.0 mm

CoC Tier:

Line Regulation:

5.00 %

Maximum DC Input Voltage:

Not App

AC Input Current - Typical:

Not Spec'd

Output Type:

Fixed

Power Indicator:

Safety Approvals:

CE, cUL, GS, PSE, TUV, UL
