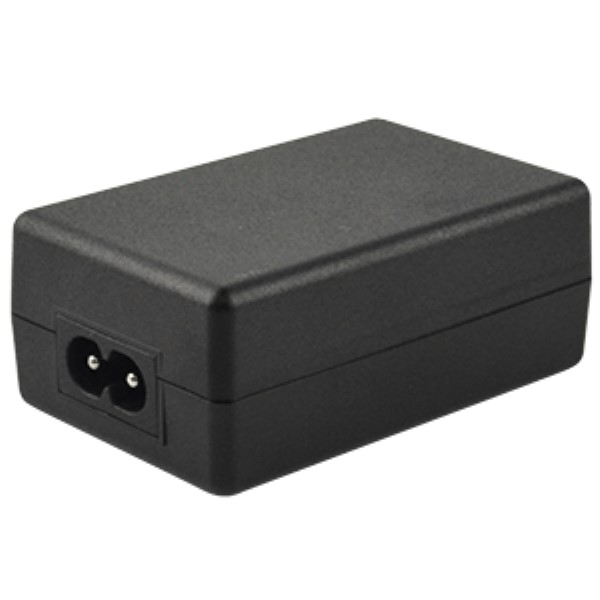

SDI12-5.9-UDC-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDI12-5.9-UDC-P5

CUI Inc.

AC/DC Adapter - Desktop - 11.8 Watts: 5.9V @ 2A - C8 Input - Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDI12-5.9-UDC-P5
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
Box
Thermal Protection:
No
Output Connector Polarity:
Center Positive
Output Cord Length:
1.5m (59.1in)
Minimum Load (Amps):
0
Output Connector Type:
Barrel - Female
Over Voltage Protection:
Yes
Maximum Output Power:
11.8 W
Maximum Output Current:
2.0 A
AC Input Voltage:
90 to 264
Maximum Input Voltage:
264Vac
AC Input Current - Typical:
Not Spec'd
Power:
11.8 W
Type:
Regulated-Switching
Input Voltage:
90 to 264Vac
PFC:
No
Operating Temperature:
0 to 40 °C
DC Input Voltage:
Not App
Number of Outputs:
1
Dimension:
75 x 48 x 30 mm
Grade:
Commercial
Output Connector Diameters:
2.1 x 5.5 mm
Output Type:
Fixed
Mounting Style:
External
Input Frequency:
47 to 63 Hz
Line Regulation:
5.00 %
Load Regulation:
5.00 %
Style:
Desktop Adapter
Typical Hold-Up Time:
Not Spec'd
Output Voltage:
5.9 Vdc
Efficiency:
Not Spec'd
Typical Inrush Current:
60A(Max) at 240Vac
Maximum Input Current:
Not Spec'd
Input/Output Type:
AC/DC
Minimum AC Input Voltage:
90
Safety Class:
None
Output Current:
2.0 A
Minimum Isolation Voltage:
3000Vac
Power Rating:
11.8 W
Input Connector Type:
IEC 320-C8
Adapter Color:
Black
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Dimensions L x W x H(in):
2.96 x 1.87 x 1.08 in
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Dimensions LxWxH:
2.953 x 1.87 x 1.075 in
Dimensions L x W x H:
75.0 x 48.0 x 30.0 mm
Maximum DC Input Voltage:
Not App
DOE Efficiency Level:
VI
Family:
SDI12-UD
Short Circuit Protection:
Yes
Mounting:
External
AC Input Current - Maximum:
0.31A
MOPP:
Not App
Overload Protection:
Yes
Power Indicator:
No
CoC Tier:
2
Ripple & Noise:
100 mV
Minimum Input Voltage:
90Vac
Output Connector Angle:
Straight
Package Type:
Desktop
Minimum DC Input Voltage:
Not App
Maximum AC Input Voltage:
264
AC/DC Adapter - Desktop - 11.8 Watts: 5.9V @ 2A - C8 Input - Lvl VI/T2
Search Keywords:
SDI1259UDCP5
IN STOCK: 0
MOQ for out of Stock Qty:
135
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$47.12
$47.12
25
$46.42
$1,160.50
50
$45.72
$2,286.00
100
$45.03
$4,503.00
135
$44.36
$5,988.60
270
$23.41
$6,320.70
405
$16.10
$6,520.50
540 +
$15.78
$8,521.20
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
