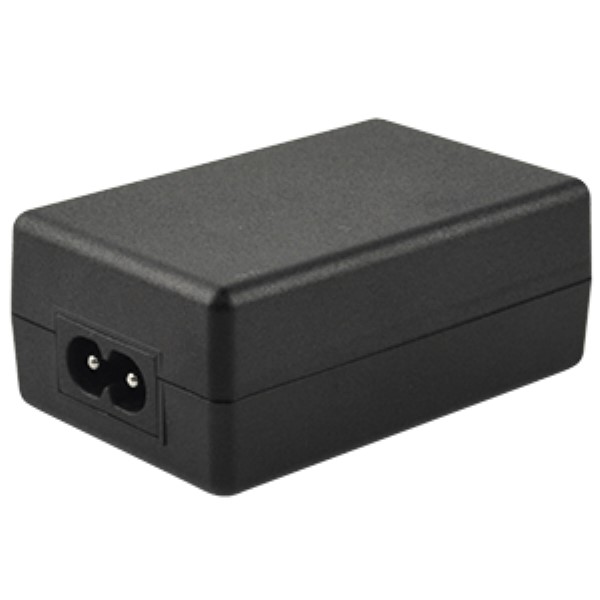

SDI12-12-UD-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDI12-12-UD-P5

CUI Inc.

AC/DC Adapter - Desktop - 12 Watts: 12V @ 1 A - C8 Input - Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDI12-12-UD-P5
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
Box
Maximum AC Input Voltage:
264
PFC:
No
Short Circuit Protection:
Yes
Mounting:
External
CoC Tier:
2
Package Type:
Desktop
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Maximum Input Current:
Not Spec'd
Maximum Output Current:
1.0 A
Load Regulation:
5.00 %
AC Input Current - Maximum:
0.31A
Dimensions L x W x H(in):
2.96 x 1.87 x 1.08 in
Maximum Input Voltage:
264Vac
Minimum DC Input Voltage:
Not App
AC Input Current - Typical:
Not Spec'd
Power Rating:
12 W
Style:
Desktop Adapter
Minimum Load (Amps):
0
Grade:
Commercial
Typical Hold-Up Time:
Not Spec'd
Input/Output Type:
AC/DC
Maximum DC Input Voltage:
Not App
Line Regulation:
5.00 %
Output Connector Diameters:
2.1 x 5.5 mm
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Dimensions LxWxH:
2.953 x 1.87 x 1.075 in
Maximum Output Power:
12 W
Input Voltage:
90 to 264Vac
Minimum AC Input Voltage:
90
Typical Inrush Current:
60A(Max) at 240Vac
Over Voltage Protection:
Yes
Output Current:
1.0 A
Output Connector Angle:
Straight
Type:
Regulated-Switching
Adapter Color:
Black
Power Indicator:
No
AC Input Voltage:
90 to 264
Operating Temperature:
0 to 40 °C
Power:
12 W
MOPP:
Not App
Minimum Isolation Voltage:
3000Vac
Family:
SDI12-UD
Minimum Input Voltage:
90Vac
Efficiency:
Not Spec'd
Output Connector Polarity:
Center Positive
DC Input Voltage:
Not App
Number of Outputs:
1
Input Frequency:
47 to 63 Hz
Mounting Style:
External
Dimension:
75 x 48 x 30 mm
Safety Class:
None
Thermal Protection:
No
Ripple & Noise:
120 mV
Output Cord Length:
1.5m (59.1in)
Output Connector Type:
Barrel - Female
Output Type:
Fixed
Dimensions L x W x H:
75.0 x 48.0 x 30.0 mm
Output Voltage:
12 VDC
Input Connector Type:
IEC 320-C8
Overload Protection:
Yes
DOE Efficiency Level:
VI
AC/DC Adapter - Desktop - 12 Watts: 12V @ 1 A - C8 Input - Lvl VI/T2
Search Keywords:
SDI1212UDP5
IN STOCK: 0
MOQ for out of Stock Qty:
75
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
75
$29.99
$2,249.25
150
$15.88
$2,382.00
225
$11.17
$2,513.25
300 +
$10.95
$3,285.00
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
