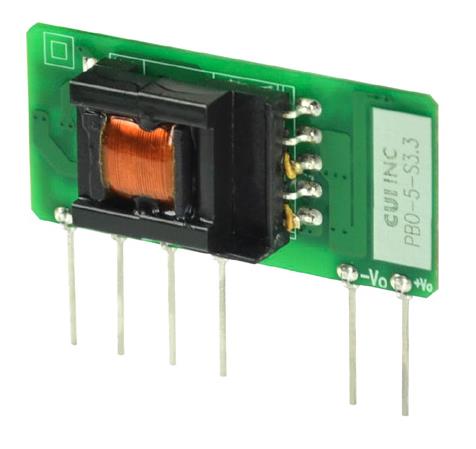

Image is representational - see mfr. specs

DATA SHEET

PBO-5-S12

CUI Inc.

AC/DC Power Supply - Open Frame - PCB Mount - SIP - 5 Watts - 12V@ 0.42A

RoHS Compliant

TRAY Packaging

Accessories

Discontinued & Replaced

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

CUI Inc.

Part No:

PBO-5-S12

RoHS:

Yes

HTS:

8504409510

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

108

Package Type:

TRAY

Maximum DC Input Voltage:

400 V

Family:

PBO-5

Packaging:

N/A

Type:

Regulated-Switching

Number of Outputs:

Minimum Input Voltage:

85VAC | 100 VDC

AC Input Voltage:

85 to 264 V

Minimum Isolation Voltage:

3000 VAC 3000Vac

Dimension:

40.0 x 20.0(Max) x 12.8(Max) mm

Package Type:

Open Frame

Output Current:

0.42 A

Safety Approvals:

CE, UL/cUL

Operating Temperature:

-25 to 85 °C

Minimum DC Input Voltage:

100 V

Mounting Style:

PCB

Input Frequency:

47 to 63 Hz

Power:

5 W

DC Input Voltage:

100 to 400 V

Input Voltage:

85 to 264VAC | 100 to 400 VDC

Mounting:

Through Hole

Maximum AC Input Voltage:

264 V

Maximum Output Power:

5 W

Maximum Input Current:

0.2A @ 115 VAC

Style:

Open Frame

Dimensions LxWxH:

1.575 x 0.788(Max) x 0.504(Max) in

Minimum AC Input Voltage:

85 V

Grade:

Commercial

Output Voltage:

12 VDC 12Vdc

Maximum Output Current:

0.42 A

Efficiency:

76(Typ) %

Pin_Count:

Supplier_Package:

SIP Module

Output Connector Type:

PC Pins121

Input Connector Type:

PC Pins107

Supplier Temperature Grade:

Commercial130

Output Type:

Fixed122

Life Cycle:

Discontinued & Replaced

AC/DC Power Supply - Open Frame - PCB Mount - SIP - 5 Watts - 12V@ 0.42A

Product Highlights:

Potential Applications:

Search Keywords:

PBO5S12

This product is not in stock and cannot be back-ordered

This product is discontinued, but still in stock

This product is not in stock and cannot be back-ordered

Different packaging options available. See Alternatives

Possible Replacement options available. See Alternatives

This product is NOT RoHS Compliant. See Alternatives

End of Life: Final orders must be placed by

IN STOCK: 0

BONDED Quantity:

Manufacturer Stock:

0 can ship

On Order:

Stock lot only:

Minimum Order Quantity:

MOQ for out of Stock Qty:

Multiple:

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

VIEW PRODUCT

Min quantity should be greater than or equal () in order to activate the custom price. Otherwise you will get the normal price.

Price (USD)

Quantity

Unit Price

Ext. Price

$10.57

$52.85

$9.61

$240.25

$9.19

$459.50

108

$8.93

$964.44

324

$8.46

$2,741.04

540

$8.24

$4,449.60

1,080 +

$8.12

$8,769.60

Suppliers Standard Package

Standard Packaging

Standard packaging is the minimum package size Eccoconnectors.com receives from the supplier. The minimum order quantity might be less than the supplier's standard packaging. The type of packaging (such as reel, tube, tray) may be subject to change when the product is divided into smaller quantities.

Click for Quote

Schedule Order

You may schedule release quantities and ship dates in the shopping cart.

RECOMMENDED REPLACEMENT

PBK-5-12

VIEW PRODUCT

Product Guides

3D Model

Datasheet
