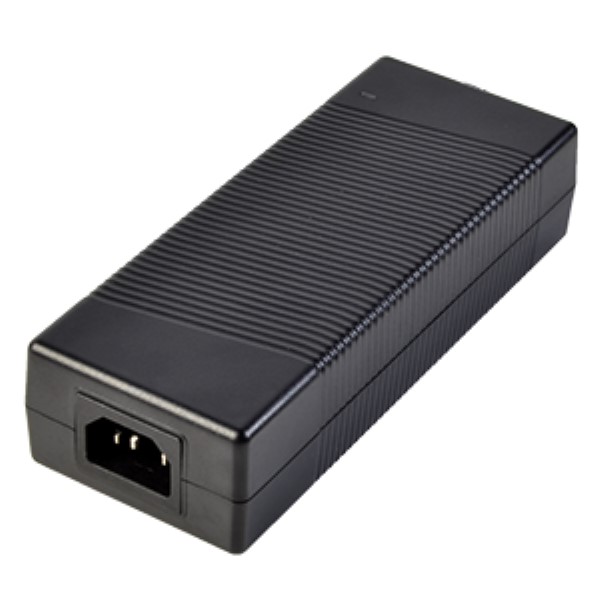

Image is representational - see mfr. specs
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA480209UC-P51-WP
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack
1
Minimum DC Input Voltage:
Not App
Maximum AC Input Voltage:
264
Mounting:
External
Output Cord Length:
1.0m (39.4in)
Style:
Desktop Adapter
CoC Tier:
No
Short Circuit Protection:
Yes
Output Connector Angle:
Straight
Dimensions L x W x H(in):
6.70 x 3.35 x 1.74 in
Package Type:
Desktop
Line Regulation:
-2.00 %
Safety Approvals:
CE, cUL, GS, TUV, UL
Over Voltage Protection:
Yes
MOPP:
Not App
Type:
Regulated-Switching
Output Connector Polarity:
Not App
Maximum Output Power:
100 W
Power:
100 W
Family:
ETSA-100W-U
Output Connector Diameters:
Not App
Mounting Style:
External
Adapter Color:
Black
AC Input Current - Maximum:
2.5A at 90Vac 50 Hz
Minimum Load (Amps):
0
Minimum Isolation Voltage:
4242Vdc
Maximum Output Current:
2.09 A
Dimensions LxWxH:
6.7 x 3.35 x 1.74 in
Minimum Input Voltage:
90Vac
Input/Output Type:
AC/DC
Input Connector Type:
IEC 320-C14
Maximum Input Current:
Not Spec'd
Output Type:
Fixed
AC Input Current - Typical:
Not Spec'd
Operating Temperature:
0 to 60 °C
Power Indicator:
No
Dimension:
170 x 85 x 44 mm
PFC:
Yes
Input Frequency:
47 to 63 Hz
Safety Class:
None
Output Voltage:
48 VDC
Typical Hold-Up Time:
16 ms
Input Voltage:
90 to 264Vac
Dimensions L x W x H:
170.0 x 85.0 x 44.0 mm
Maximum DC Input Voltage:
Not App
Minimum AC Input Voltage:
90
Ripple & Noise:
480 mV
Overload Protection:
No
Output Current:
2.09 A
DOE Efficiency Level:
V
Special Features:
Power Factor Correction
Grade:
Commercial
Typical Inrush Current:
150A(Max) at 230Vac
Number of Outputs:
1
Efficiency:
Not Spec'd
Power Rating:
100 W
Maximum Input Voltage:
264Vac
DC Input Voltage:
Not App
Thermal Protection:
No
Output Connector Type:
DIN - Cyl - 4-Pin
Load Regulation:
-2.00 %
AC Input Voltage:
90 to 264
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 100 Watts: 8V @ 2.09A - Lvl V
Search Keywords:
ETSA480209UCP51WP
This product is not in stock and cannot be back-ordered
