ETSA480125UDC-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA480125UDC-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 60 Watts: 48V @ 1.25A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA480125UDC-P5P-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
PFC:
No
MOPP:
Not App
Operating Temperature:
0 to 40 °C
Output Voltage:
48 VDC
Input Frequency:
47 to 63 Hz
Output Type:
Fixed
Output Connector Type:
Barrel - Female
Output Cord Length:
1.83m (72.1in)
Power Indicator:
No
Output Connector Polarity:
Center Positive
DOE Efficiency Level:
V
AC Input Current - Maximum:
Not Spec'd
AC Input Voltage:
90 to 264
Safety Class:
None
Line Regulation:
1.00 %
Type:
Regulated-Switching
Minimum Input Voltage:
90Vac
Special Features:
Low Leakage Current
Input Connector Type:
IEC 320-C8
Adapter Color:
Black
Number of Outputs:
1
Family:
ETSA-40W-UD
Maximum DC Input Voltage:
Not App
Minimum Isolation Voltage:
4242Vdc/3000Vac
Over Voltage Protection:
Yes
Dimensions L x W x H(in):
4.57 x 1.97 x 1.22 in
Output Current:
1.25 A
Thermal Protection:
No
Safety Approvals:
CE, cUL, GS, TUV, UL
Mounting:
External
Input Voltage:
90 to 264Vac
Maximum Input Voltage:
264Vac
Minimum DC Input Voltage:
Not App
Package Type:
Desktop
Typical Hold-Up Time:
Not Spec'd
Output Connector Diameters:
2.1 x 5.5 mm
Grade:
Commercial
CoC Tier:
No
Power Rating:
60 W
Power:
60 W
Minimum AC Input Voltage:
90
Short Circuit Protection:
Yes
Maximum Input Current:
Not Spec'd
Minimum Load (Amps):
0
Output Connector Angle:
Straight
Ripple & Noise:
190 mV
Dimension:
75 x 47.8 x 28.2 mm
Typical Inrush Current:
1.5A(Max)
Dimensions LxWxH:
4.57 x 1.97 x 1.22 in
Style:
Desktop Adapter
Overload Protection:
No
Dimensions L x W x H:
75.0 x 47.8 x 28.2 mm
Maximum AC Input Voltage:
264
Input/Output Type:
AC/DC
Mounting Style:
External
Efficiency:
Not Spec'd
AC Input Current - Typical:
Not Spec'd
Load Regulation:
5.00 %
Maximum Output Power:
60 W
DC Input Voltage:
Not App
Maximum Output Current:
1.25 A
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 60 Watts: 48V @ 1.25A - C8 Input - Lvl V
Search Keywords:
ETSA480125UDCP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

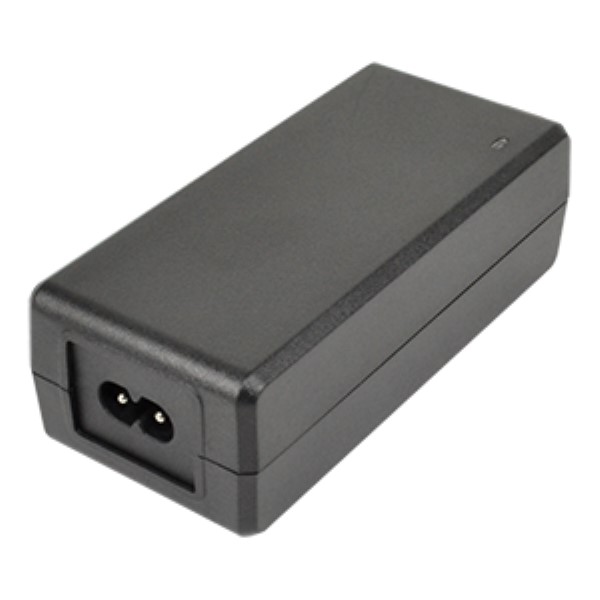

RECOMMENDED REPLACEMENT
