ETSA480083U-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA480083U-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 40 Watts: 48V @ 0.83A - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA480083U-P5P-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Maximum Output Power:
40 W
Maximum Input Voltage:
264Vac
Output Current:
0.83 A
Typical Inrush Current:
1.0A(Max)
AC Input Voltage:
90 to 264
Input/Output Type:
AC/DC
Maximum AC Input Voltage:
264
DC Input Voltage:
Not App
Output Voltage:
48 VDC
CoC Tier:
No
Power:
40 W
Short Circuit Protection:
Yes
Input Voltage:
90 to 264Vac
Power Indicator:
No
MOPP:
Not App
PFC:
No
Over Voltage Protection:
Yes
Output Connector Diameters:
2.1 x 5.5 mm
Minimum Input Voltage:
90Vac
Minimum Load (Amps):
0
Output Cord Length:
1.53m (60.3in)
Line Regulation:
1.00 %
Efficiency:
Not Spec'd
Dimensions LxWxH:
3.18 x 1.97 x 1.22 in
Load Regulation:
5.00 %
Output Connector Angle:
Straight
Minimum DC Input Voltage:
Not App
Input Connector Type:
IEC 320-C14
DOE Efficiency Level:
V
Operating Temperature:
0 to 40 °C
Grade:
Commercial
Minimum AC Input Voltage:
90
Minimum Isolation Voltage:
1500Vac
AC Input Current - Maximum:
Not Spec'd
AC Input Current - Typical:
Not Spec'd
Typical Hold-Up Time:
Not Spec'd
Dimensions L x W x H(in):
3.18 x 1.97 x 1.22 in
Adapter Color:
Black
Package Type:
Desktop
Ripple & Noise:
240 mV
Maximum Output Current:
0.83 A
Mounting:
External
Output Connector Polarity:
Center Positive
Overload Protection:
No
Mounting Style:
External
Output Connector Type:
Barrel - Female
Maximum Input Current:
Not Spec'd
Dimensions L x W x H:
80.6 x 50.0 x 31.0 mm
Output Type:
Fixed
Maximum DC Input Voltage:
Not App
Family:
ETSA-40W-U
Thermal Protection:
No
Safety Class:
None
Style:
Desktop Adapter
Number of Outputs:
1
Input Frequency:
47 to 63 Hz
Type:
Regulated-Switching
Power Rating:
40 W
Dimension:
80.6 x 50 x 31 mm
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 40 Watts: 48V @ 0.83A - Lvl V
Search Keywords:
ETSA480083UP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

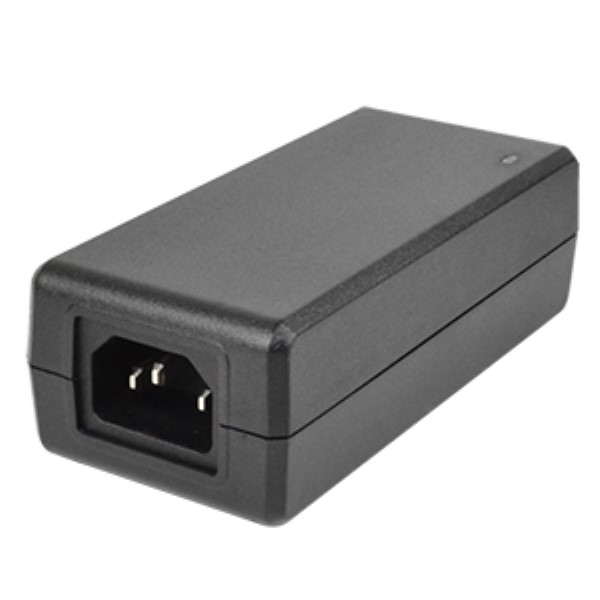

RECOMMENDED REPLACEMENT
SDI50-48-U-P5
SDI50-48-U-P5
