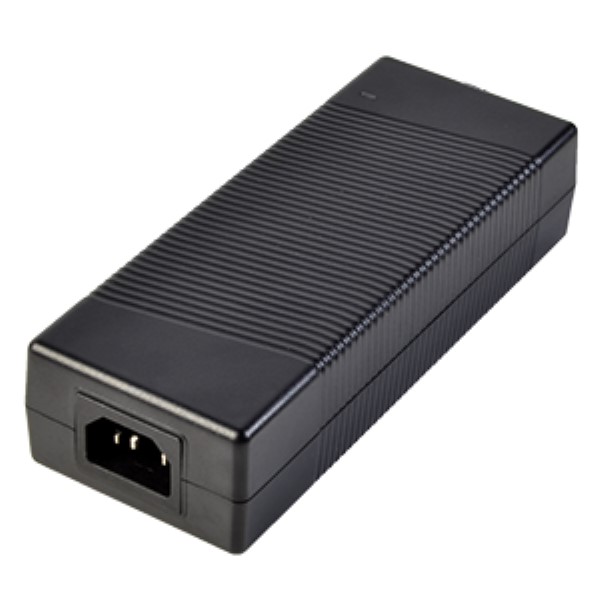

Image is representational - see mfr. specs
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA240417UC-P51-WP
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack
1
PFC:
Yes
MOPP:
Not App
Efficiency:
Not Spec'd
Grade:
Commercial
Output Connector Polarity:
Not App
Dimension:
170 x 85 x 44 mm
Input Connector Type:
IEC 320-C14
Power:
100 W
Over Voltage Protection:
Yes
Maximum Output Current:
4.17 A
Family:
ETSA-100W-U
Maximum Input Voltage:
264Vac
DOE Efficiency Level:
V
Line Regulation:
-2.00 %
Input Frequency:
47 to 63 Hz
Output Connector Diameters:
Not App
Minimum Isolation Voltage:
4242Vdc
DC Input Voltage:
Not App
Overload Protection:
No
Minimum Load (Amps):
0
Power Rating:
100 W
Typical Hold-Up Time:
16 ms
Minimum Input Voltage:
90Vac
Mounting:
External
AC Input Current - Typical:
Not Spec'd
Operating Temperature:
0 to 60 °C
Safety Approvals:
CE, cUL, GS, TUV, UL
Package Type:
Desktop
Adapter Color:
Black
Output Current:
4.17 A
Load Regulation:
-2.00 %
AC Input Current - Maximum:
2.5A at 90Vac 50 Hz
Mounting Style:
External
Minimum AC Input Voltage:
90
Power Indicator:
No
Output Voltage:
24 VDC
Output Cord Length:
1.0m (39.4in)
Short Circuit Protection:
Yes
Dimensions L x W x H(in):
6.70 x 3.35 x 1.74 in
Maximum AC Input Voltage:
264
Input Voltage:
90 to 264Vac
Ripple & Noise:
480 mV
Type:
Regulated-Switching
Minimum DC Input Voltage:
Not App
Maximum Output Power:
100 W
Output Type:
Fixed
Input/Output Type:
AC/DC
Special Features:
Power Factor Correction
Typical Inrush Current:
Not Spec'd
CoC Tier:
No
Thermal Protection:
No
Number of Outputs:
1
Maximum Input Current:
Not Spec'd
Safety Class:
None
Output Connector Angle:
Straight
Style:
Desktop Adapter
Dimensions LxWxH:
6.7 x 3.35 x 1.74 in
Maximum DC Input Voltage:
Not App
Dimensions L x W x H:
170.0 x 85.0 x 44.0 mm
Output Connector Type:
DIN - Cyl - 4-Pin
AC Input Voltage:
90 to 264
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 100 Watts: 4V @ 4.17A - Lvl V
Search Keywords:
ETSA240417UCP51WP
This product is not in stock and cannot be back-ordered
