ETSA240270UDC-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA240270UDC-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 60 Watts: 24V @ 2.7A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA240270UDC-P5P-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Output Cord Length:
1.53m (60.3in)
Load Regulation:
5.00 %
Power Rating:
60 W
Power:
60 W
Short Circuit Protection:
Yes
Style:
Desktop Adapter
Input Frequency:
47 to 63 Hz
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
AC Input Current - Maximum:
Not Spec'd
Mounting:
External
Input/Output Type:
AC/DC
Package Type:
Desktop
Maximum AC Input Voltage:
264
Dimensions LxWxH:
4.49 x 1.85 x 1.28 in
AC Input Voltage:
90 to 264
Operating Temperature:
0 to 40 °C
Maximum Input Voltage:
264Vac
Minimum Isolation Voltage:
1500Vac
Overload Protection:
No
Grade:
Commercial
Maximum DC Input Voltage:
Not App
Power Indicator:
Yes
Thermal Protection:
No
Number of Outputs:
1
Maximum Output Current:
2.7 A
Minimum DC Input Voltage:
Not App
MOPP:
Not App
Dimensions L x W x H(in):
4.49 x 1.85 x 1.28 in
Output Current:
2.7 A
Output Connector Type:
Barrel - Female
Over Voltage Protection:
Yes
PFC:
No
Typical Inrush Current:
1.5A(Max)
Output Connector Polarity:
Center Positive
Minimum Load (Amps):
0
Special Features:
Low Leakage Current
Line Regulation:
1.00 %
Efficiency:
Not Spec'd
AC Input Current - Typical:
Not Spec'd
Output Type:
Fixed
CoC Tier:
No
Family:
ETSA-60W-U
Input Voltage:
90 to 264Vac
Output Connector Angle:
Straight
Adapter Color:
Black
Safety Class:
None
Minimum Input Voltage:
90Vac
Maximum Input Current:
Not Spec'd
Output Connector Diameters:
2.1 x 5.5 mm
Input Connector Type:
IEC 320-C8
Maximum Output Power:
60 W
Mounting Style:
External
DC Input Voltage:
Not App
Typical Hold-Up Time:
Not Spec'd
DOE Efficiency Level:
V
Output Voltage:
24 VDC
Dimension:
114 x 47 x 32.4 mm
Minimum AC Input Voltage:
90
Type:
Regulated-Switching
Dimensions L x W x H:
114.0 x 47.0 x 32.4 mm
Ripple & Noise:
240 mV
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 60 Watts: 24V @ 2.7A - C8 Input - Lvl V
Search Keywords:
ETSA240270UDCP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

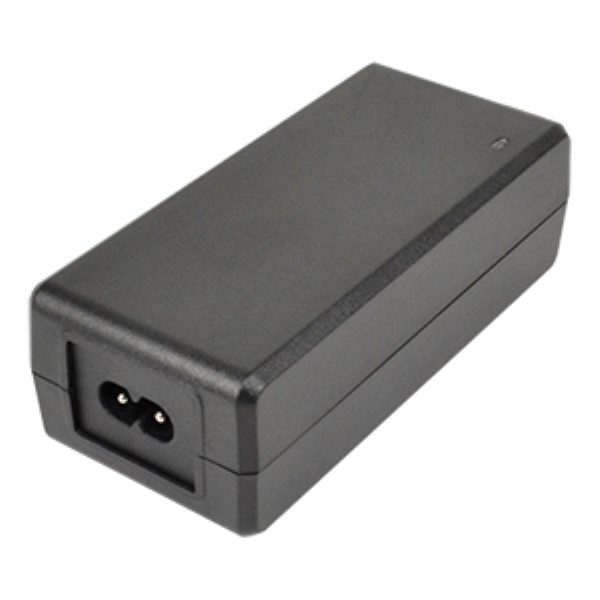

RECOMMENDED REPLACEMENT
SDI65-24-UDC-P5R
SDI65-24-UDC-P5R
