ETSA240270UC-P6P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA240270UC-P6P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 60 Watts: 24V @ 2.7A - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA240270UC-P6P-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
AC Input Voltage:
90 to 264
Type:
Regulated-Switching
DOE Efficiency Level:
V
Ripple & Noise:
240 mV
Special Features:
Low Leakage Current
Minimum Load (Amps):
0
AC Input Current - Typical:
Not Spec'd
MOPP:
Not App
Minimum Input Voltage:
90Vac
Output Voltage:
24 VDC
Dimensions LxWxH:
4.49 x 1.85 x 1.28 in
Output Cord Length:
1.53m (60.3in)
Dimensions L x W x H(in):
4.49 x 1.85 x 1.28 in
Minimum AC Input Voltage:
90
Output Connector Diameters:
2.5 x 5.5 mm
Output Current:
2.7 A
Minimum DC Input Voltage:
Not App
Output Connector Angle:
Straight
Input Connector Type:
IEC 320-C14
Input/Output Type:
AC/DC
Mounting:
External
Family:
ETSA-60W-U
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Operating Temperature:
0 to 40 °C
Dimension:
114 x 47 x 32.4 mm
Safety Class:
None
Output Type:
Fixed
AC Input Current - Maximum:
1.5A
Maximum DC Input Voltage:
Not App
Maximum Input Current:
Not Spec'd
Typical Inrush Current:
1.5A(Max)
Typical Hold-Up Time:
Not Spec'd
Over Voltage Protection:
Yes
Number of Outputs:
1
Load Regulation:
5.00 %
Dimensions L x W x H:
114.0 x 47.0 x 32.4 mm
Thermal Protection:
No
Line Regulation:
1.00 %
DC Input Voltage:
Not App
Overload Protection:
No
Adapter Color:
Black
Efficiency:
Not Spec'd
Grade:
Commercial
CoC Tier:
No
Minimum Isolation Voltage:
1500Vac
Style:
Desktop Adapter
Maximum Output Current:
2.7 A
Output Connector Type:
Barrel - Female
Power Indicator:
Yes
Power Rating:
60 W
Maximum Output Power:
60 W
Package Type:
Desktop
Power:
60 W
Maximum Input Voltage:
264Vac
Short Circuit Protection:
Yes
Input Frequency:
47 to 63 Hz
Input Voltage:
90 to 264Vac
Output Connector Polarity:
Center Positive
Mounting Style:
External
PFC:
No
Maximum AC Input Voltage:
264
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 60 Watts: 24V @ 2.7A - Lvl V
Search Keywords:
ETSA240270UCP6PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

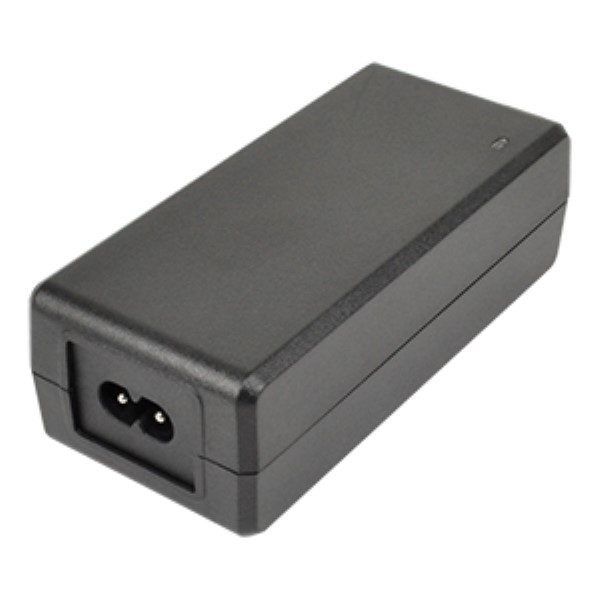

RECOMMENDED REPLACEMENT
SDI65-24-UDC-P6
SDI65-24-UDC-P6
VIEW PRODUCT
