ETSA240170UDC-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA240170UDC-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 40 Watts: 24V @ 1.7A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA240170UDC-P5P-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Desktop
Minimum DC Input Voltage:
Not App
Short Circuit Protection:
Yes
Power:
40 W
Dimension:
75 x 47.8 x 28.2 mm
CoC Tier:
No
Output Current:
1.7 A
Number of Outputs:
1
Grade:
Commercial
DOE Efficiency Level:
V
Type:
Regulated-Switching
Load Regulation:
5.00 %
Maximum Output Power:
40 W
PFC:
No
AC Input Current - Maximum:
1.0A
Minimum Isolation Voltage:
4242Vdc/3000Vac
Input Frequency:
47 to 63 Hz
Minimum AC Input Voltage:
90
Maximum Output Current:
1.7 A
Input Connector Type:
IEC 320-C8
Over Voltage Protection:
No
Operating Temperature:
0 to 40 °C
Maximum Input Voltage:
264Vac
Overload Protection:
No
Output Connector Polarity:
Center Positive
AC Input Voltage:
90 to 264
Dimensions L x W x H(in):
2.97 x 1.88 x 1.11 in
Output Connector Angle:
Straight
Safety Class:
None
Power Rating:
40 W
Style:
Desktop Adapter
MOPP:
Not App
Power Indicator:
No
Maximum Input Current:
Not Spec'd
Typical Inrush Current:
150A(Max) at 230Vac
Maximum DC Input Voltage:
Not App
Output Type:
Fixed
Output Connector Type:
Barrel - Female
Thermal Protection:
No
Line Regulation:
1.00 %
Typical Hold-Up Time:
Not Spec'd
Minimum Input Voltage:
90Vac
DC Input Voltage:
Not App
Dimensions LxWxH:
2.97 x 1.88 x 1.11 in
Efficiency:
Not Spec'd
Ripple & Noise:
240 mV
AC Input Current - Typical:
Not Spec'd
Adapter Color:
Black
Dimensions L x W x H:
75.0 x 47.8 x 28.2 mm
Family:
ETSA-40W-UD
Maximum AC Input Voltage:
264
Output Cord Length:
1.83m (72.1in)
Output Voltage:
24 VDC
Output Connector Diameters:
2.1 x 5.5 mm
Input Voltage:
90 to 264Vac
Mounting Style:
External
Safety Approvals:
CE, cUL, GS, TUV, UL
Input/Output Type:
AC/DC
Mounting:
External
Minimum Load (Amps):
0
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 40 Watts: 24V @ 1.7A - C8 Input - Lvl V
Search Keywords:
ETSA240170UDCP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

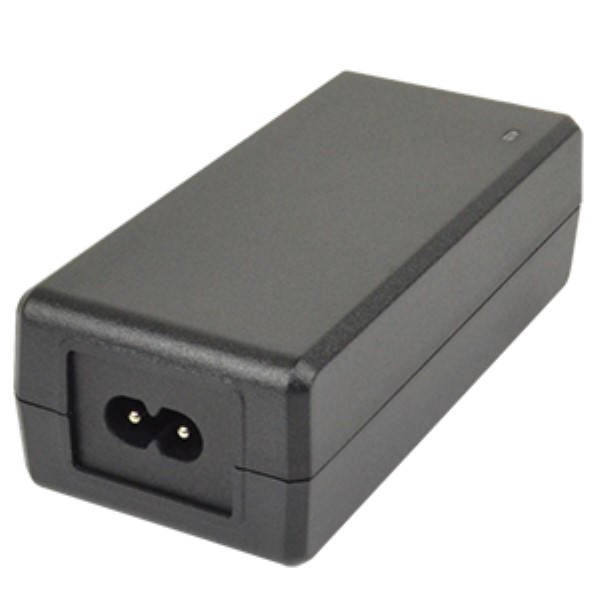

RECOMMENDED REPLACEMENT
SDI50-24-UDC-P5
SDI50-24-UDC-P5
VIEW PRODUCT
