ETSA240167UC-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA240167UC-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 40 Watts: 24V @ 1.67A - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA240167UC-P5P-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Maximum Output Current:
1.67 A
Dimension:
80.6 x 50 x 31 mm
AC Input Current - Maximum:
Not Spec'd
Dimensions L x W x H(in):
3.18 x 1.97 x 1.22 in
Mounting:
External
Dimensions L x W x H:
80.6 x 50.0 x 31.0 mm
Package Type:
Desktop
Minimum DC Input Voltage:
Not App
Style:
Desktop Adapter
Number of Outputs:
1
Output Connector Type:
Barrel - Female
Maximum Input Voltage:
264Vac
Input Frequency:
47 to 63 Hz
Typical Inrush Current:
1.0A(Max)
AC Input Voltage:
90 to 264
Maximum AC Input Voltage:
264
Typical Hold-Up Time:
Not Spec'd
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Output Cord Length:
1.53m (60.3in)
Overload Protection:
No
Dimensions LxWxH:
3.18 x 1.97 x 1.22 in
MOPP:
Not App
Grade:
Commercial
Input/Output Type:
AC/DC
PFC:
No
Minimum Input Voltage:
90Vac
Maximum Output Power:
40 W
Type:
Regulated-Switching
Load Regulation:
5.00 %
Output Connector Angle:
Straight
Adapter Color:
Black
Output Voltage:
24 VDC
Short Circuit Protection:
Yes
Output Current:
1.67 A
Power Rating:
40 W
Maximum Input Current:
Not Spec'd
Input Voltage:
90 to 264Vac
Power Indicator:
No
Line Regulation:
1.00 %
Thermal Protection:
No
Output Type:
Fixed
Minimum Isolation Voltage:
1500Vac
Over Voltage Protection:
Yes
Ripple & Noise:
240 mV
DC Input Voltage:
Not App
Efficiency:
Not Spec'd
Output Connector Polarity:
Center Positive
Input Connector Type:
IEC 320-C14
DOE Efficiency Level:
V
Operating Temperature:
0 to 40 °C
Power:
40 W
Mounting Style:
External
Output Connector Diameters:
2.1 x 5.5 mm
CoC Tier:
No
Maximum DC Input Voltage:
Not App
Minimum AC Input Voltage:
90
Family:
ETSA-40W-U
Safety Class:
None
AC Input Current - Typical:
Not Spec'd
Minimum Load (Amps):
0
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 40 Watts: 24V @ 1.67A - Lvl V
Search Keywords:
ETSA240167UCP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

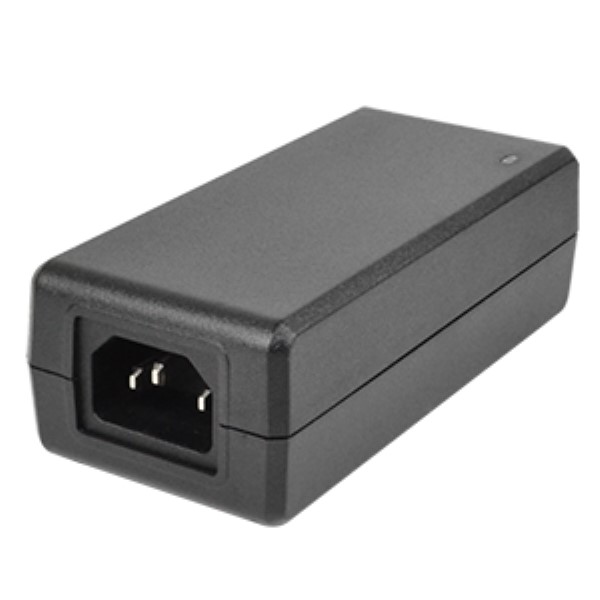

RECOMMENDED REPLACEMENT
SDI50-24-UC-P5
SDI50-24-UC-P5
