ETSA240050UDC-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA240050UDC-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 12 Watts: 24V @ 0.5A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA240050UDC-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Safety Class:
None
Line Regulation:
5.00 %
Output Voltage:
24 VDC
Mounting Style:
External
Power Rating:
12 W
Typical Hold-Up Time:
Not Spec'd
Maximum Output Current:
0.5 A
Dimension:
75 x 47.5 x 27.3 mm
Mounting:
External
Maximum DC Input Voltage:
Not App
Family:
ETSA-12W-UD
Dimensions L x W x H(in):
2.96 x 1.87 x 1.08 in
Overload Protection:
No
Output Connector Angle:
Straight
Package Type:
Desktop
Output Current:
0.5 A
Dimensions L x W x H:
75.0 x 47.5 x 27.3 mm
Maximum AC Input Voltage:
264
Typical Inrush Current:
30/60A(Max) at 115/230Vac
Minimum AC Input Voltage:
90
AC Input Voltage:
90 to 264
Adapter Color:
Black
Safety Approvals:
CE, cUL, GS, TUV, UL
Maximum Input Current:
Not Spec'd
Number of Outputs:
1
MOPP:
Not App
Minimum DC Input Voltage:
Not App
DC Input Voltage:
Not App
Input Voltage:
90 to 264Vac
Input Frequency:
47 to 63 Hz
Efficiency:
Not Spec'd
Output Connector Diameters:
2.1 x 5.5 mm
CoC Tier:
No
Load Regulation:
5.00 %
Minimum Load (Amps):
0
Dimensions LxWxH:
2.96 x 1.87 x 1.08 in
Style:
Desktop Adapter
Minimum Input Voltage:
90Vac
Over Voltage Protection:
Yes
Power Indicator:
No
AC Input Current - Typical:
Not Spec'd
Ripple & Noise:
150 mV
Type:
Regulated-Switching
Maximum Output Power:
12 W
Short Circuit Protection:
Yes
Output Cord Length:
1.83m (72.1in)
Power:
12 W
DOE Efficiency Level:
V
PFC:
No
Operating Temperature:
0 to 40 °C
Output Connector Polarity:
Center Positive
Maximum Input Voltage:
264Vac
Minimum Isolation Voltage:
4242Vdc/3000Vac
Input Connector Type:
IEC 320-C8
Output Type:
Fixed
Output Connector Type:
Barrel - Female
Thermal Protection:
No
Input/Output Type:
AC/DC
Grade:
Commercial
AC Input Current - Maximum:
0.3A
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 12 Watts: 24V @ 0.5A - C8 Input - Lvl V
Search Keywords:
ETSA240050UDCP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

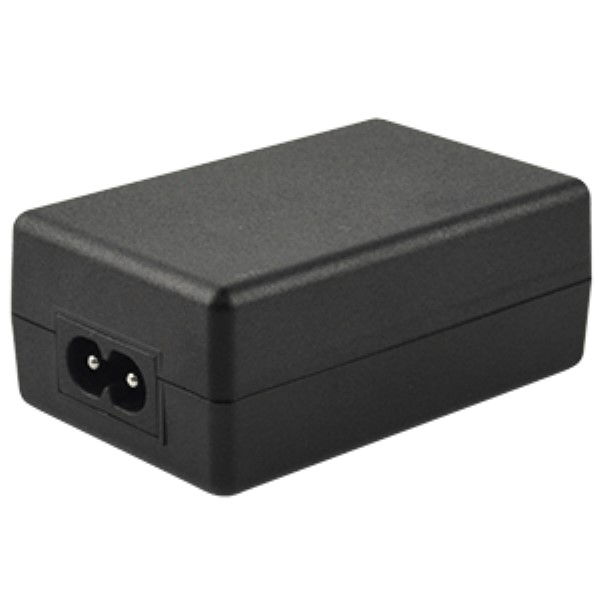

RECOMMENDED REPLACEMENT
SDI12-24-UDC-P5R
SDI12-24-UDC-P5R
