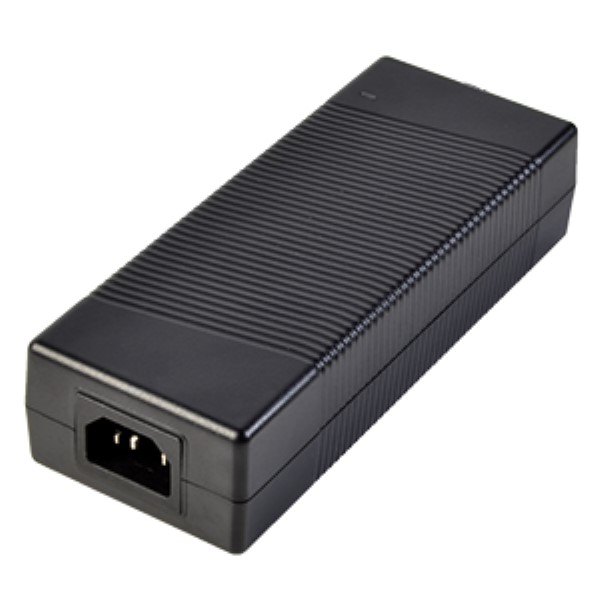

Image is representational - see mfr. specs
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA190527UC-P51-WP
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack
1
Package Type:
Desktop
Minimum DC Input Voltage:
Not App
CoC Tier:
No
Maximum Output Power:
100 W
DC Input Voltage:
Not App
Line Regulation:
-2.00 %
Number of Outputs:
1
Efficiency:
Not Spec'd
Maximum Input Voltage:
264Vac
Overload Protection:
No
Output Current:
5.27 A
Special Features:
Power Factor Correction
PFC:
Yes
Safety Class:
None
Typical Hold-Up Time:
16 ms
Power Indicator:
No
Input Voltage:
90 to 264Vac
Mounting:
External
AC Input Current - Maximum:
2.5A at 90Vac 50 Hz
Output Connector Polarity:
Not App
Input Connector Type:
IEC 320-C14
Minimum Isolation Voltage:
4242Vdc
Maximum AC Input Voltage:
264
Maximum Input Current:
Not Spec'd
Output Connector Angle:
Straight
Minimum Input Voltage:
90Vac
Minimum AC Input Voltage:
90
AC Input Voltage:
90 to 264
Type:
Regulated-Switching
Power:
100 W
Typical Inrush Current:
150A(Max) at 230Vac
MOPP:
Not App
Dimensions L x W x H(in):
6.70 x 3.35 x 1.74 in
Input Frequency:
47 to 63 Hz
Over Voltage Protection:
Yes
Minimum Load (Amps):
0
Adapter Color:
Black
Ripple & Noise:
380 mV
Output Voltage:
19 VDC
Output Connector Diameters:
Not App
DOE Efficiency Level:
V
Safety Approvals:
CE, cUL, GS, TUV, UL
Output Connector Type:
DIN - Cyl - 4-Pin
Power Rating:
100 W
Dimension:
170 x 85 x 44 mm
Dimensions LxWxH:
6.7 x 3.35 x 1.74 in
Style:
Desktop Adapter
Grade:
Commercial
Operating Temperature:
0 to 60 °C
Maximum Output Current:
5.27 A
Maximum DC Input Voltage:
Not App
Mounting Style:
External
Output Type:
Fixed
Dimensions L x W x H:
170.0 x 85.0 x 44.0 mm
AC Input Current - Typical:
Not Spec'd
Thermal Protection:
No
Load Regulation:
-2.00 %
Short Circuit Protection:
Yes
Output Cord Length:
1.0m (39.4in)
Input/Output Type:
AC/DC
Family:
ETSA-100W-U
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 100 Watts: 9V @ 5.27A - Lvl V
Search Keywords:
ETSA190527UCP51WP
This product is not in stock and cannot be back-ordered
