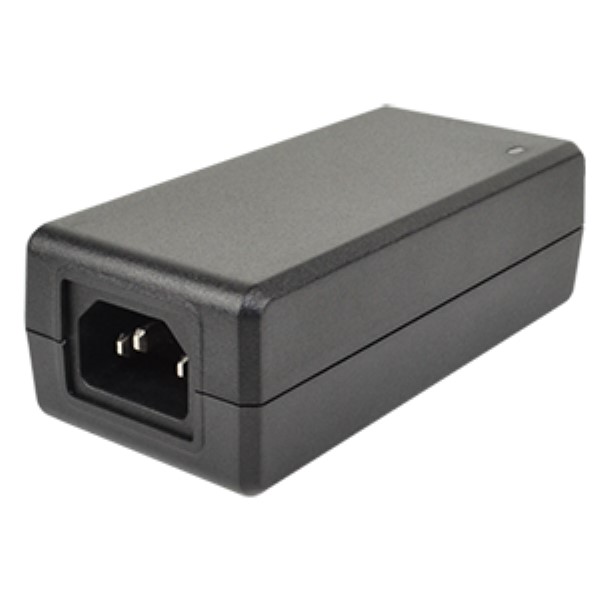

Image is representational - see mfr. specs
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA190342UC-P5P-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack
1
Safety Class:
None
Mounting Style:
External
Minimum Input Voltage:
90Vac
Dimensions L x W x H:
114.0 x 47.0 x 32.4 mm
Maximum DC Input Voltage:
Not App
Output Connector Angle:
Straight
Typical Inrush Current:
1.5A(Max)
Input Connector Type:
IEC 320-C14
Typical Hold-Up Time:
Not Spec'd
Style:
Desktop Adapter
Maximum Input Current:
Not Spec'd
Dimensions LxWxH:
4.49 x 1.85 x 1.28 in
Load Regulation:
5.00 %
Efficiency:
Not Spec'd
Short Circuit Protection:
Yes
MOPP:
Not App
Minimum DC Input Voltage:
Not App
Special Features:
Low Leakage Current
Minimum Load (Amps):
0
Maximum AC Input Voltage:
264
Output Connector Polarity:
Center Positive
Number of Outputs:
1
Input/Output Type:
AC/DC
Maximum Output Power:
60 W
Family:
ETSA-60W-U
Maximum Input Voltage:
264Vac
Input Frequency:
47 to 63 Hz
Output Connector Diameters:
2.1 x 5.5 mm
Input Voltage:
90 to 264Vac
Overload Protection:
No
Power:
60 W
DC Input Voltage:
Not App
Output Cord Length:
1.53m (60.3in)
Power Indicator:
Yes
DOE Efficiency Level:
V
Over Voltage Protection:
Yes
Output Connector Type:
Barrel - Female
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Dimension:
114 x 47 x 32.4 mm
Package Type:
Desktop
Power Rating:
60 W
Thermal Protection:
No
Output Current:
3.42 A
Mounting:
External
Minimum Isolation Voltage:
1500Vac
AC Input Current - Maximum:
1.5A
Minimum AC Input Voltage:
90
Output Voltage:
19 VDC
CoC Tier:
No
Operating Temperature:
0 to 40 °C
Ripple & Noise:
240 mV
PFC:
No
AC Input Voltage:
90 to 264
Dimensions L x W x H(in):
4.49 x 1.85 x 1.28 in
Adapter Color:
Black
Maximum Output Current:
3.42 A
Line Regulation:
1.00 %
Type:
Regulated-Switching
AC Input Current - Typical:
Not Spec'd
Output Type:
Fixed
Grade:
Commercial
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 60 Watts: 19V @ 3.42A - Lvl V
Search Keywords:
ETSA190342UCP5PSZ
This product is not in stock and cannot be back-ordered
