ETSA150120UDC-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA150120UDC-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 18 Watts: 15V @ 1.2A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA150120UDC-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Input/Output Type:
AC/DC
Maximum Input Voltage:
264Vac
PFC:
No
DOE Efficiency Level:
V
Input Voltage:
90 to 264Vac
Type:
Regulated-Switching
Output Connector Diameters:
2.1 x 5.5 mm
Maximum Output Power:
18 W
CoC Tier:
No
Over Voltage Protection:
Yes
MOPP:
Not App
Power Rating:
18 W
Dimension:
80.6 x 50 x 31 mm
Input Frequency:
47 to 63 Hz
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Line Regulation:
1.00 %
AC Input Voltage:
90 to 264
Typical Inrush Current:
40/80A(Max) at 115/230Vac
Mounting Style:
External
Output Type:
Fixed
AC Input Current - Typical:
Not Spec'd
Minimum AC Input Voltage:
90
Minimum Input Voltage:
90Vac
Mounting:
External
Dimensions L x W x H:
80.6 x 50.0 x 31.0 mm
Power Indicator:
No
DC Input Voltage:
Not App
Load Regulation:
5.00 %
Family:
ETSA-18W-U
Output Connector Polarity:
Center Positive
Ripple & Noise:
100 mV
Grade:
Commercial
Number of Outputs:
1
Efficiency:
Not Spec'd
Input Connector Type:
IEC 320-C8
Output Connector Type:
Barrel - Female
Minimum DC Input Voltage:
Not App
Maximum DC Input Voltage:
Not App
Output Connector Angle:
Straight
Maximum AC Input Voltage:
264
Overload Protection:
No
Operating Temperature:
0 to 40 °C
Dimensions L x W x H(in):
3.18 x 1.97 x 1.22 in
Thermal Protection:
No
Output Cord Length:
1.53m (60.3in)
Typical Hold-Up Time:
Not Spec'd
Style:
Desktop Adapter
Maximum Input Current:
Not Spec'd
Output Voltage:
15 VDC
Power:
18 W
Output Current:
1.2 A
Package Type:
Desktop
Minimum Isolation Voltage:
1500Vac
AC Input Current - Maximum:
0.5A
Minimum Load (Amps):
0
Safety Class:
None
Dimensions LxWxH:
3.18 x 1.97 x 1.22 in
Adapter Color:
Black
Short Circuit Protection:
Yes
Maximum Output Current:
1.2 A
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 18 Watts: 15V @ 1.2A - C8 Input - Lvl V
Search Keywords:
ETSA150120UDCP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

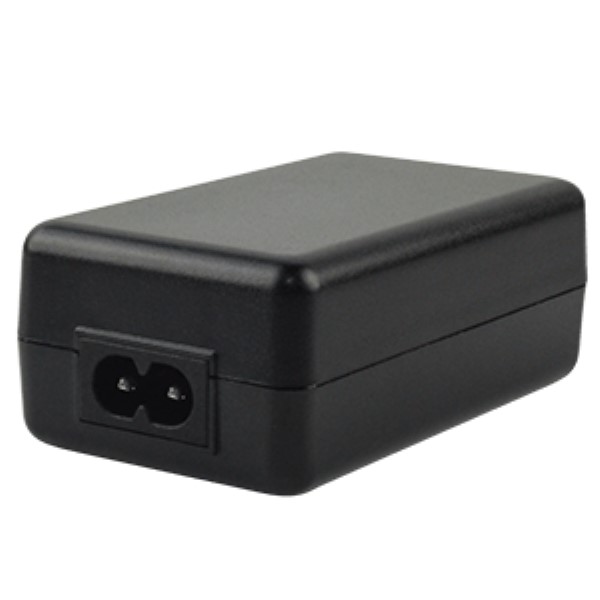

RECOMMENDED REPLACEMENT
SDI18-15-UDC-P5
SDI18-15-UDC-P5
