ETSA120500UD-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA120500UD-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 60 Watts : 12V @ 5A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA120500UD-P5P-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Style:
Desktop Adapter
Output Voltage:
12 VDC
Minimum DC Input Voltage:
Not App
Number of Outputs:
1
Maximum AC Input Voltage:
264
Overload Protection:
No
Power:
60 W
Over Voltage Protection:
Yes
Output Cord Length:
1.0m (39.4in)
Input/Output Type:
AC/DC
Maximum Input Voltage:
264Vac
Short Circuit Protection:
Yes
Family:
ETSA-60W-U
CoC Tier:
No
Mounting:
External
Output Connector Polarity:
Center Positive
PFC:
No
Grade:
Commercial
Output Current:
5.0 A
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Dimensions L x W x H:
114.0 x 47.0 x 32.4 mm
Dimension:
114 x 47 x 32.4 mm
Special Features:
Low Leakage Current
Adapter Color:
Black
DOE Efficiency Level:
V
DC Input Voltage:
Not App
Power Rating:
60 W
Power Indicator:
Yes
Dimensions L x W x H(in):
4.49 x 1.85 x 1.28 in
Efficiency:
Not Spec'd
Operating Temperature:
0 to 40 °C
AC Input Voltage:
90 to 264
Maximum Input Current:
Not Spec'd
Minimum Load (Amps):
0
Input Connector Type:
IEC 320-C8
Maximum DC Input Voltage:
Not App
Type:
Regulated-Switching
Line Regulation:
1.00 %
Typical Hold-Up Time:
Not Spec'd
Safety Class:
None
Output Type:
Fixed
Output Connector Type:
Barrel - Female
Minimum Isolation Voltage:
1500Vac
Thermal Protection:
No
AC Input Current - Typical:
Not Spec'd
Minimum AC Input Voltage:
90
Input Frequency:
47 to 63 Hz
Output Connector Diameters:
2.1 x 5.5 mm
Typical Inrush Current:
1.4A(Max)
Minimum Input Voltage:
90Vac
Maximum Output Power:
60 W
Package Type:
Desktop
Maximum Output Current:
5.0 A
MOPP:
Not App
Input Voltage:
90 to 264Vac
Mounting Style:
External
Dimensions LxWxH:
4.49 x 1.85 x 1.28 in
Output Connector Angle:
Straight
Load Regulation:
5.00 %
AC Input Current - Maximum:
Not Spec'd
Ripple & Noise:
200 mV
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 60 Watts : 12V @ 5A - C8 Input - Lvl V
Search Keywords:
ETSA120500UDP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

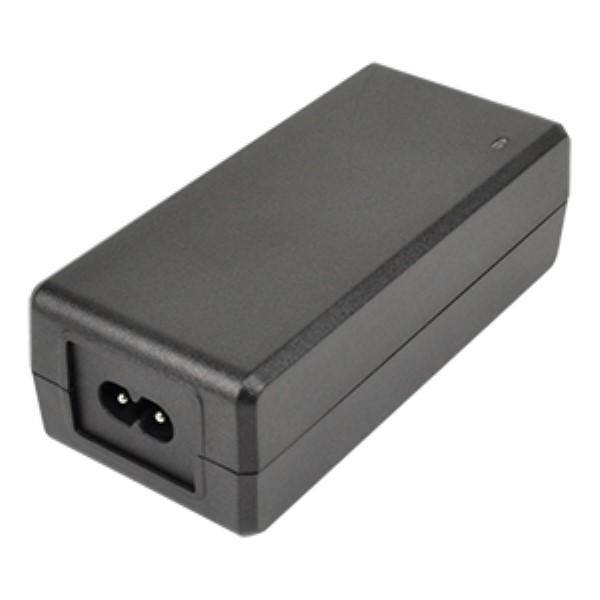

RECOMMENDED REPLACEMENT
SDI65-12-UD-P5
SDI65-12-UD-P5
