ETSA120500UDC-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA120500UDC-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 60 Watts : 12V @ 5A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA120500UDC-P5P-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Maximum Input Current:
Not Spec'd
Power Rating:
60 W
Output Current:
5.0 A
Dimensions LxWxH:
4.49 x 1.85 x 1.28 in
Thermal Protection:
No
Adapter Color:
Black
Minimum Isolation Voltage:
1500Vac
AC Input Current - Maximum:
Not Spec'd
Mounting:
External
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Mounting Style:
External
Dimensions L x W x H:
114.0 x 47.0 x 32.4 mm
Output Connector Angle:
Straight
Style:
Desktop Adapter
Output Cord Length:
1.0m (39.4in)
Input Connector Type:
IEC 320-C8
CoC Tier:
No
Input Frequency:
47 to 63 Hz
Power:
60 W
Load Regulation:
5.00 %
AC Input Voltage:
90 to 264
Minimum Load (Amps):
0
Minimum Input Voltage:
90Vac
Power Indicator:
Yes
Typical Hold-Up Time:
Not Spec'd
Minimum DC Input Voltage:
Not App
Line Regulation:
1.00 %
Package Type:
Desktop
Type:
Regulated-Switching
Output Type:
Fixed
Maximum Input Voltage:
264Vac
Dimension:
114 x 47 x 32.4 mm
Family:
ETSA-60W-U
Special Features:
Low Leakage Current
Typical Inrush Current:
1.4A(Max)
Maximum Output Power:
60 W
Safety Class:
None
Output Voltage:
12 VDC
DC Input Voltage:
Not App
Maximum AC Input Voltage:
264
Input Voltage:
90 to 264Vac
Maximum Output Current:
5.0 A
Output Connector Diameters:
2.1 x 5.5 mm
Number of Outputs:
1
Output Connector Type:
Barrel - Female
Efficiency:
Not Spec'd
Output Connector Polarity:
Center Positive
MOPP:
Not App
Short Circuit Protection:
Yes
Overload Protection:
No
Grade:
Commercial
PFC:
No
DOE Efficiency Level:
V
Dimensions L x W x H(in):
4.49 x 1.85 x 1.28 in
Input/Output Type:
AC/DC
Operating Temperature:
0 to 40 °C
Minimum AC Input Voltage:
90
AC Input Current - Typical:
Not Spec'd
Maximum DC Input Voltage:
Not App
Over Voltage Protection:
Yes
Ripple & Noise:
200 mV
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 60 Watts : 12V @ 5A - C8 Input - Lvl V
Search Keywords:
ETSA120500UDCP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

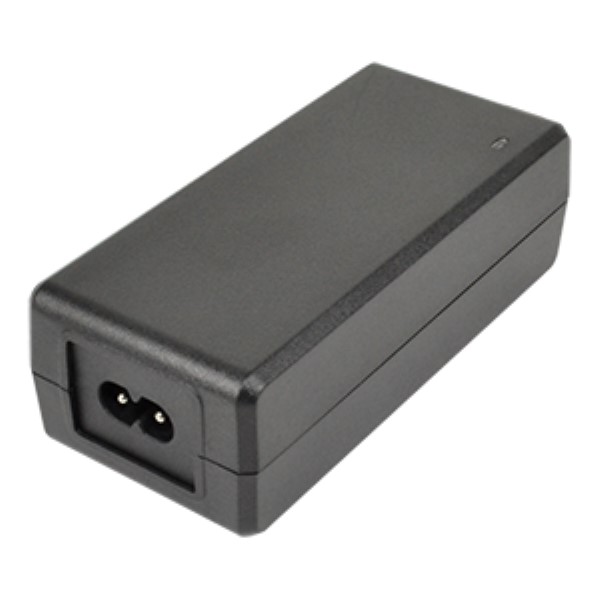

RECOMMENDED REPLACEMENT
SDI65-12-UDC-P5
SDI65-12-UDC-P5
