ETSA120330UD-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA120330UD-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 40 Watts: 12V @ 3.3A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA120330UD-P5P-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Dimensions L x W x H(in):
3.18 x 1.97 x 1.22 in
CoC Tier:
No
Overload Protection:
No
Dimension:
80.6 x 50 x 31 mm
Power:
40 W
Package Type:
Desktop
Number of Outputs:
1
Ripple & Noise:
200 mV
Maximum Input Voltage:
264Vac
Output Voltage:
12 VDC
Mounting:
External
Input/Output Type:
AC/DC
Thermal Protection:
No
Maximum AC Input Voltage:
264
AC Input Current - Maximum:
1.0A
Operating Temperature:
0 to 40 °C
Maximum Output Current:
3.3 A
PFC:
No
Load Regulation:
5.00 %
Line Regulation:
1.00 %
Input Frequency:
47 to 63 Hz
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Short Circuit Protection:
Yes
Output Connector Type:
Barrel - Female
Power Rating:
40 W
Grade:
Commercial
Dimensions LxWxH:
3.18 x 1.97 x 1.22 in
Output Type:
Fixed
DOE Efficiency Level:
V
Mounting Style:
External
Maximum DC Input Voltage:
Not App
Output Cord Length:
1.53m (60.3in)
Efficiency:
Not Spec'd
Maximum Input Current:
Not Spec'd
Output Connector Polarity:
Center Positive
Minimum Input Voltage:
90Vac
Safety Class:
None
Adapter Color:
Black
Output Current:
3.3 A
Minimum Isolation Voltage:
1500Vac
Family:
ETSA-40W-U
Dimensions L x W x H:
80.6 x 50.0 x 31.0 mm
AC Input Voltage:
90 to 264
Input Connector Type:
IEC 320-C8
Typical Inrush Current:
1.0A(Max)
Minimum AC Input Voltage:
90
Minimum Load (Amps):
0
AC Input Current - Typical:
Not Spec'd
Over Voltage Protection:
Yes
MOPP:
Not App
Style:
Desktop Adapter
Power Indicator:
No
Output Connector Angle:
Straight
DC Input Voltage:
Not App
Input Voltage:
90 to 264Vac
Type:
Regulated-Switching
Output Connector Diameters:
2.1 x 5.5 mm
Typical Hold-Up Time:
Not Spec'd
Minimum DC Input Voltage:
Not App
Maximum Output Power:
40 W
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 40 Watts: 12V @ 3.3A - C8 Input - Lvl V
Search Keywords:
ETSA120330UDP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

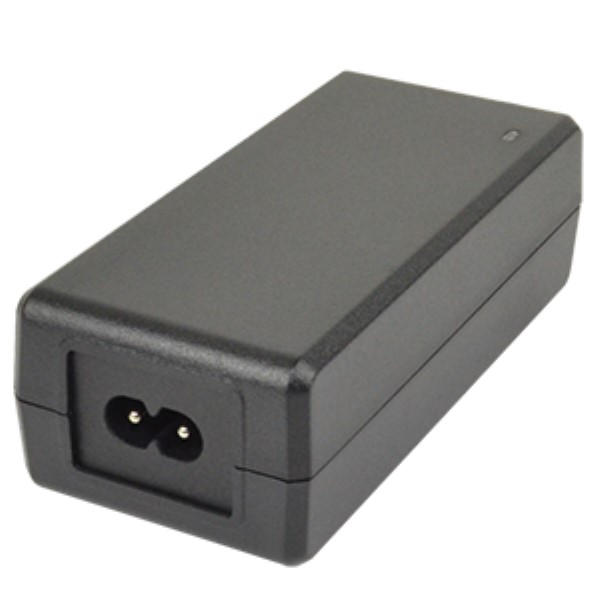

RECOMMENDED REPLACEMENT
SDI50-12-UD-P5
SDI50-12-UD-P5
VIEW PRODUCT
