ETSA120330UDC-P5RP-SZ by cui inc.
Image is representational - see mfr. specs

ETSA120330UDC-P5RP-SZ

CUI Inc.

AC/DC Adapter - Desktop - 40 Watts: 12V @ 3.3A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA120330UDC-P5RP-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
AC Input Voltage:
90 to 264
AC Input Current - Maximum:
1.0A
Input Voltage:
90 to 264Vac
Output Connector Diameters:
2.1 x 5.5 mm
Over Voltage Protection:
Yes
Output Connector Polarity:
Center Positive
Minimum Load (Amps):
0
Maximum Input Current:
Not Spec'd
Thermal Protection:
No
Output Type:
Fixed
Typical Inrush Current:
1.0A(Max)
Power Rating:
40 W
Maximum DC Input Voltage:
Not App
AC Input Current - Typical:
Not Spec'd
Output Connector Type:
Barrel - Female
PFC:
No
Mounting Style:
External
Input Frequency:
47 to 63 Hz
Operating Temperature:
0 to 40 °C
MOPP:
Not App
CoC Tier:
No
Maximum AC Input Voltage:
264
Ripple & Noise:
200 mV
Number of Outputs:
1
Input Connector Type:
IEC 320-C8
Efficiency:
Not Spec'd
Safety Class:
None
Adapter Color:
Black
Overload Protection:
No
Dimensions L x W x H(in):
3.18 x 1.97 x 1.22 in
Line Regulation:
1.00 %
DOE Efficiency Level:
V
Dimensions L x W x H:
80.6 x 50.0 x 31.0 mm
Maximum Input Voltage:
264Vac
Load Regulation:
5.00 %
Typical Hold-Up Time:
Not Spec'd
Minimum Input Voltage:
90Vac
Output Current:
3.3 A
Output Voltage:
12 VDC
Style:
Desktop Adapter
Maximum Output Power:
40 W
Short Circuit Protection:
Yes
Grade:
Commercial
Input/Output Type:
AC/DC
DC Input Voltage:
Not App
Mounting:
External
Power Indicator:
No
Minimum DC Input Voltage:
Not App
Output Cord Length:
1.53m (60.3in)
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Type:
Regulated-Switching
Power:
40 W
Dimensions LxWxH:
3.18 x 1.97 x 1.22 in
Minimum AC Input Voltage:
90
Minimum Isolation Voltage:
1500Vac
Package Type:
Desktop
Maximum Output Current:
3.3 A
Dimension:
80.6 x 50 x 31 mm
Family:
ETSA-40W-U
Output Connector Angle:
Right Angle
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 40 Watts: 12V @ 3.3A - C8 Input - Lvl V
Search Keywords:
ETSA120330UDCP5RPSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

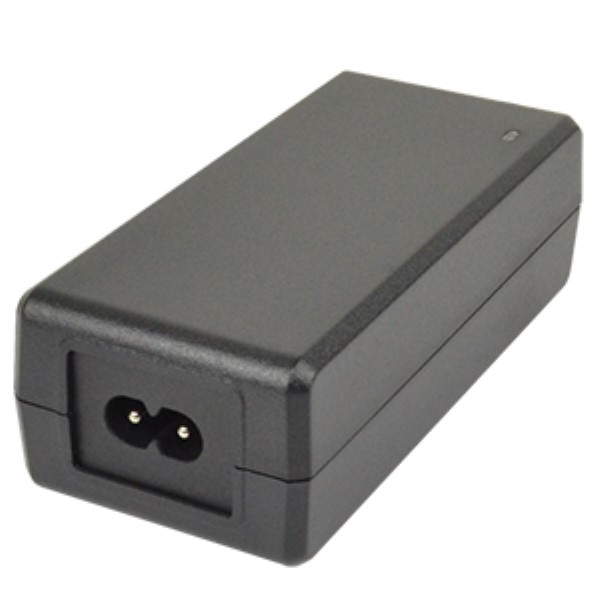

RECOMMENDED REPLACEMENT
SDI50-12-UDC-P5R
SDI50-12-UDC-P5R
