ETSA120150U-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA120150U-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 18 Watts: 12V @ 1.5A - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA120150U-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Maximum Input Current:
Not Spec'd
Power:
18 W
Output Connector Angle:
Straight
Maximum DC Input Voltage:
Not App
Maximum Output Current:
1.5 A
Dimensions L x W x H(in):
3.18 x 1.97 x 1.22 in
Dimensions L x W x H:
80.6 x 50.0 x 31.0 mm
Output Cord Length:
1.53m (60.3in)
Minimum AC Input Voltage:
90
Maximum AC Input Voltage:
264
Safety Class:
None
Output Voltage:
12 VDC
Input Connector Type:
IEC 320-C14
Power Indicator:
No
Mounting Style:
External
Minimum Input Voltage:
90Vac
Power Rating:
18 W
Input/Output Type:
AC/DC
Dimension:
80.6 x 50 x 31 mm
Mounting:
External
Style:
Desktop Adapter
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Output Current:
1.5 A
Minimum Isolation Voltage:
1500Vac
Dimensions LxWxH:
3.18 x 1.97 x 1.22 in
Minimum Load (Amps):
0
Package Type:
Desktop
Maximum Input Voltage:
264Vac
MOPP:
Not App
Output Type:
Fixed
Load Regulation:
5.00 %
Type:
Regulated-Switching
Number of Outputs:
1
Overload Protection:
No
AC Input Current - Typical:
Not Spec'd
Efficiency:
Not Spec'd
Line Regulation:
1.00 %
Grade:
Commercial
Output Connector Type:
Barrel - Female
Over Voltage Protection:
Yes
Maximum Output Power:
18 W
Ripple & Noise:
100 mV
Typical Inrush Current:
40/80A(Max) at 115/230Vac
DC Input Voltage:
Not App
PFC:
No
Output Connector Polarity:
Center Positive
Minimum DC Input Voltage:
Not App
Thermal Protection:
No
CoC Tier:
No
DOE Efficiency Level:
V
Input Voltage:
90 to 264Vac
Output Connector Diameters:
2.1 x 5.5 mm
Input Frequency:
47 to 63 Hz
Family:
ETSA-18W-U
Short Circuit Protection:
Yes
Adapter Color:
Black
AC Input Voltage:
90 to 264
AC Input Current - Maximum:
0.5A
Operating Temperature:
0 to 40 °C
Typical Hold-Up Time:
Not Spec'd
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 18 Watts: 12V @ 1.5A - Lvl V
Search Keywords:
ETSA120150UP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

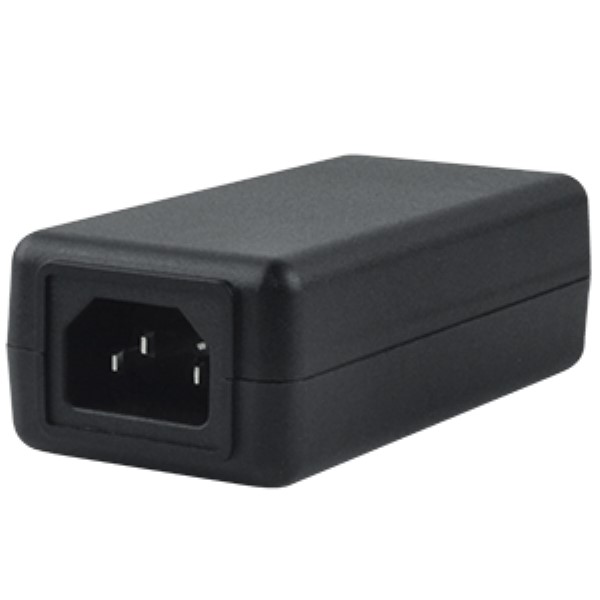

RECOMMENDED REPLACEMENT
SDI18-12-U-P5
SDI18-12-U-P5
VIEW PRODUCT
