ETSA120150UDC-P5RP-SZ by cui inc.
Image is representational - see mfr. specs

ETSA120150UDC-P5RP-SZ

CUI Inc.

AC/DC Adapter - Desktop - 18 Watts: 12V @ 1.5A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA120150UDC-P5RP-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Minimum Input Voltage:
90Vac
Input Voltage:
90 to 264Vac
Output Type:
Fixed
Minimum Load (Amps):
0
Typical Inrush Current:
40/80A(Max) at 115/230Vac
Minimum AC Input Voltage:
90
Over Voltage Protection:
Yes
Input Connector Type:
IEC 320-C8
Power Indicator:
No
Safety Class:
None
Output Connector Diameters:
2.1 x 5.5 mm
AC Input Current - Maximum:
0.5A
Type:
Regulated-Switching
Short Circuit Protection:
Yes
AC Input Voltage:
90 to 264
Output Connector Polarity:
Center Positive
Input/Output Type:
AC/DC
AC Input Current - Typical:
Not Spec'd
Maximum AC Input Voltage:
264
Maximum Output Power:
18 W
Load Regulation:
5.00 %
Maximum DC Input Voltage:
Not App
Output Cord Length:
1.53m (60.3in)
Maximum Input Voltage:
264Vac
Output Current:
1.5 A
Grade:
Commercial
Output Voltage:
12 VDC
Number of Outputs:
1
Efficiency:
Not Spec'd
Maximum Input Current:
Not Spec'd
Dimensions L x W x H:
80.6 x 50.0 x 31.0 mm
Power:
18 W
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
DC Input Voltage:
Not App
CoC Tier:
No
Style:
Desktop Adapter
MOPP:
Not App
Family:
ETSA-18W-U
Input Frequency:
47 to 63 Hz
Operating Temperature:
0 to 40 °C
Dimensions L x W x H(in):
3.18 x 1.97 x 1.22 in
DOE Efficiency Level:
V
Minimum Isolation Voltage:
1500Vac
Output Connector Type:
Barrel - Female
Power Rating:
18 W
Mounting:
External
Adapter Color:
Black
Thermal Protection:
No
Overload Protection:
No
Minimum DC Input Voltage:
Not App
Dimensions LxWxH:
3.18 x 1.97 x 1.22 in
Mounting Style:
External
Line Regulation:
1.00 %
PFC:
No
Ripple & Noise:
100 mV
Package Type:
Desktop
Output Connector Angle:
Right Angle
Dimension:
80.6 x 50 x 31 mm
Typical Hold-Up Time:
Not Spec'd
Maximum Output Current:
1.5 A
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 18 Watts: 12V @ 1.5A - C8 Input - Lvl V
Search Keywords:
ETSA120150UDCP5RPSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

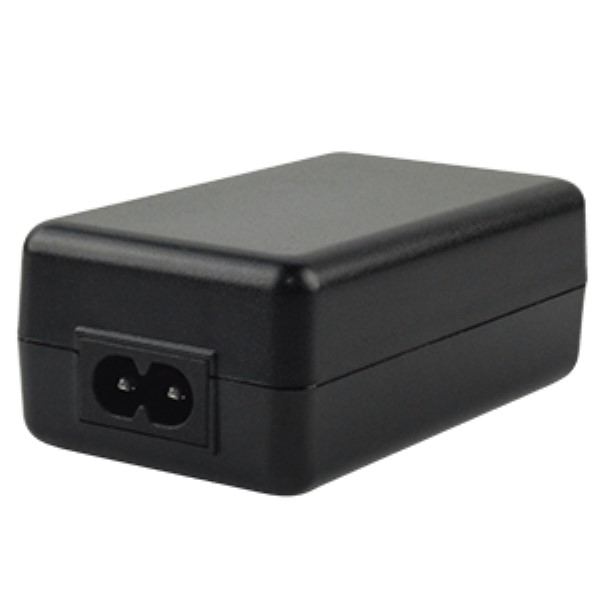

RECOMMENDED REPLACEMENT
SDI18-12-UDC-P5R
SDI18-12-UDC-P5R
VIEW PRODUCT
