ETSA120150UDC-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA120150UDC-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 18 Watts: 12V @ 1.5A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA120150UDC-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Overload Protection:
No
Dimensions L x W x H(in):
3.18 x 1.97 x 1.22 in
Load Regulation:
5.00 %
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Package Type:
Desktop
Mounting:
External
Dimension:
80.6 x 50 x 31 mm
Output Connector Angle:
Straight
Output Cord Length:
1.53m (60.3in)
Maximum AC Input Voltage:
264
Ripple & Noise:
100 mV
Maximum Input Current:
Not Spec'd
Maximum Output Current:
1.5 A
CoC Tier:
No
Power Rating:
18 W
Output Voltage:
12 VDC
Input/Output Type:
AC/DC
Line Regulation:
1.00 %
Number of Outputs:
1
Style:
Desktop Adapter
Input Frequency:
47 to 63 Hz
Operating Temperature:
0 to 40 °C
Over Voltage Protection:
Yes
Short Circuit Protection:
Yes
Input Voltage:
90 to 264Vac
Maximum Output Power:
18 W
Output Connector Diameters:
2.1 x 5.5 mm
Family:
ETSA-18W-U
Type:
Regulated-Switching
Output Current:
1.5 A
DC Input Voltage:
Not App
Thermal Protection:
No
Mounting Style:
External
Adapter Color:
Black
Grade:
Commercial
MOPP:
Not App
Dimensions L x W x H:
80.6 x 50.0 x 31.0 mm
Minimum Isolation Voltage:
1500Vac
Minimum AC Input Voltage:
90
Output Connector Type:
Barrel - Female
Dimensions LxWxH:
3.18 x 1.97 x 1.22 in
Maximum Input Voltage:
264Vac
Power:
18 W
Power Indicator:
No
AC Input Current - Maximum:
0.5A
Output Connector Polarity:
Center Positive
Output Type:
Fixed
PFC:
No
Minimum Load (Amps):
0
Efficiency:
Not Spec'd
Input Connector Type:
IEC 320-C8
Maximum DC Input Voltage:
Not App
AC Input Voltage:
90 to 264
Typical Inrush Current:
40/80A(Max) at 115/230Vac
Typical Hold-Up Time:
Not Spec'd
Safety Class:
None
AC Input Current - Typical:
Not Spec'd
Minimum DC Input Voltage:
Not App
DOE Efficiency Level:
V
Minimum Input Voltage:
90Vac
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 18 Watts: 12V @ 1.5A - C8 Input - Lvl V
Search Keywords:
ETSA120150UDCP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

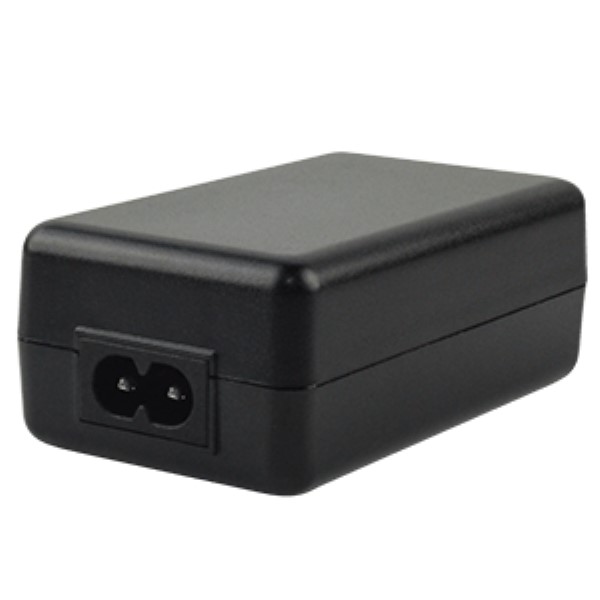

RECOMMENDED REPLACEMENT
SDI18-12-UDC-P5
SDI18-12-UDC-P5
VIEW PRODUCT
