ETSA120100UDC-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA120100UDC-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 12 Watts : 12V @ 1A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA120100UDC-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Family:
ETSA-12W-UD
Minimum DC Input Voltage:
Not App
Input/Output Type:
AC/DC
DC Input Voltage:
Not App
Typical Inrush Current:
30/60A(Max) at 115/230Vac
Number of Outputs:
1
Efficiency:
Not Spec'd
Package Type:
Desktop
Overload Protection:
No
Output Voltage:
12 VDC
Load Regulation:
5.00 %
Power:
12 W
Maximum Output Current:
1.0 A
Minimum AC Input Voltage:
90
DOE Efficiency Level:
V
Ripple & Noise:
150 mV
AC Input Current - Maximum:
0.3A
Type:
Regulated-Switching
Dimensions LxWxH:
2.96 x 1.87 x 1.08 in
Grade:
Commercial
PFC:
No
Over Voltage Protection:
Yes
Input Voltage:
90 to 264Vac
Mounting:
External
Safety Approvals:
CE, cUL, GS, TUV, UL
Short Circuit Protection:
Yes
Minimum Isolation Voltage:
4242Vdc/3000Vac
Style:
Desktop Adapter
Output Cord Length:
1.5m (59.1in)
AC Input Current - Typical:
Not Spec'd
Maximum AC Input Voltage:
264
Minimum Input Voltage:
90Vac
Output Connector Diameters:
2.1 x 5.5 mm
Power Rating:
12 W
Output Connector Polarity:
Center Positive
Dimension:
75 x 47.5 x 27.3 mm
Mounting Style:
External
Output Connector Angle:
Straight
Line Regulation:
5.00 %
Input Connector Type:
IEC 320-C8
Operating Temperature:
0 to 40 °C
Maximum Output Power:
12 W
Power Indicator:
No
Maximum DC Input Voltage:
Not App
Typical Hold-Up Time:
Not Spec'd
Thermal Protection:
No
Output Type:
Fixed
Dimensions L x W x H(in):
2.96 x 1.87 x 1.08 in
Output Current:
1.0 A
MOPP:
Not App
Input Frequency:
47 to 63 Hz
Output Connector Type:
Barrel - Female
Safety Class:
None
Dimensions L x W x H:
75.0 x 47.5 x 27.3 mm
Maximum Input Voltage:
264Vac
Maximum Input Current:
Not Spec'd
Adapter Color:
Black
Minimum Load (Amps):
0
AC Input Voltage:
90 to 264
CoC Tier:
No
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 12 Watts : 12V @ 1A - C8 Input - Lvl V
Search Keywords:
ETSA120100UDCP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

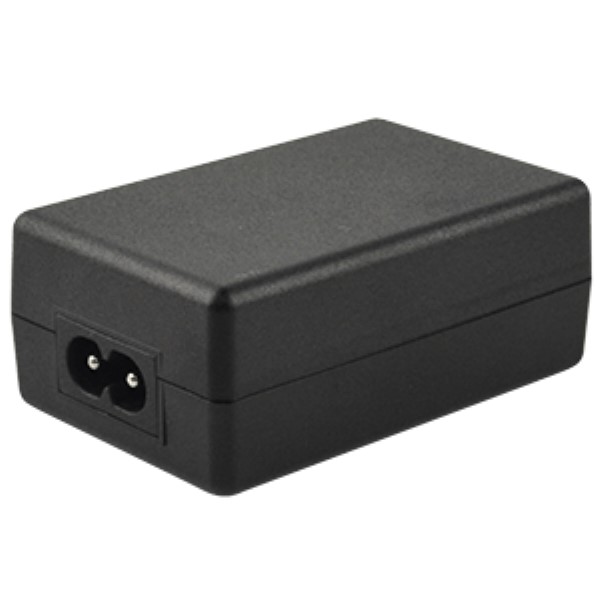

RECOMMENDED REPLACEMENT
SDI12-12-UDC-P5
SDI12-12-UDC-P5
