ETSA090133UDC-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA090133UDC-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 12 Watts: 9V @ 1.33A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA090133UDC-P5P-SZ
RoHS:
Yes
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Output Connector Diameters:
2.1 x 5.5 mm
Minimum Input Voltage:
90Vac
Output Type:
Fixed
Output Connector Type:
Barrel - Female
Dimensions L x W x H:
75.0 x 47.5 x 27.3 mm
AC Input Voltage:
90 to 264
Input Connector Type:
IEC 320-C8
Operating Temperature:
0 to 40 °C
Maximum DC Input Voltage:
Not App
AC Input Current - Typical:
Not Spec'd
Ripple & Noise:
150 mV
Power:
12 W
Output Cord Length:
1.83m (72.1in)
Maximum Output Power:
12 W
Output Current:
1.33 A
Dimension:
75 x 47.5 x 27.3 mm
Thermal Protection:
No
Power Indicator:
No
Safety Class:
None
Power Rating:
12 W
Maximum Input Current:
Not Spec'd
Minimum AC Input Voltage:
90
Adapter Color:
Black
Style:
Desktop Adapter
Input Voltage:
90 to 264Vac
Safety Approvals:
CE, cUL, GS, TUV, UL
Line Regulation:
5.00 %
Family:
ETSA-12W-UD
Mounting Style:
External
Dimensions L x W x H(in):
2.96 x 1.87 x 1.08 in
Short Circuit Protection:
Yes
Maximum Input Voltage:
264Vac
Package Type:
Desktop
CoC Tier:
No
MOPP:
Not App
Maximum AC Input Voltage:
264
Number of Outputs:
1
Input Frequency:
47 to 63 Hz
DOE Efficiency Level:
V
Grade:
Commercial
Output Connector Angle:
Straight
Minimum Isolation Voltage:
4242Vdc/3000Vac
AC Input Current - Maximum:
0.3A
Output Connector Polarity:
Center Positive
Load Regulation:
5.00 %
PFC:
No
Minimum DC Input Voltage:
Not App
Output Voltage:
9 VDC
Type:
Regulated-Switching
Mounting:
External
Overload Protection:
No
Input/Output Type:
AC/DC
Efficiency:
Not Spec'd
Typical Inrush Current:
30/60A(Max) at 115/230Vac
Dimensions LxWxH:
2.96 x 1.87 x 1.08 in
Maximum Output Current:
1.33 A
DC Input Voltage:
Not App
Over Voltage Protection:
Yes
Minimum Load (Amps):
0
Typical Hold-Up Time:
Not Spec'd
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 12 Watts: 9V @ 1.33A - C8 Input - Lvl V
Search Keywords:
ETSA090133UDCP5PSZ
  This product is not in stock and cannot be back-ordered
RECOMMENDED REPLACEMENT

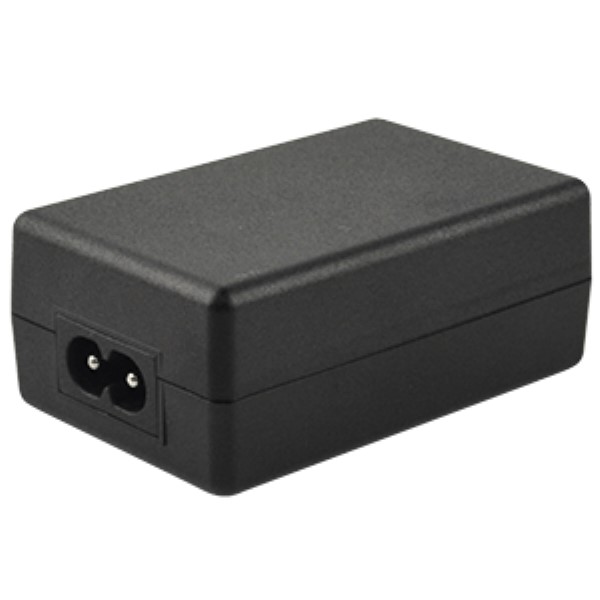

SDI12-9-UDC-P5
SDI12-9-UDC-P5
VIEW PRODUCT
