ETSA050360U-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA050360U-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 18 Watts : 5V @ 3.6A - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA050360U-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Output Connector Polarity:
Center Positive
Maximum Input Current:
Not Spec'd
Thermal Protection:
No
Power Indicator:
No
Minimum Input Voltage:
90Vac
Dimensions LxWxH:
3.18 x 1.97 x 1.22 in
Dimensions L x W x H(in):
3.18 x 1.97 x 1.22 in
Maximum Output Current:
3.0 A
Input Voltage:
90 to 264Vac
Safety Class:
None
Power:
18 W
Output Type:
Fixed
Output Voltage:
5 VDC
Over Voltage Protection:
Yes
Mounting:
External
Output Connector Type:
Barrel - Female
Minimum Load (Amps):
0
PFC:
No
Dimension:
80.6 x 50 x 31 mm
Maximum DC Input Voltage:
Not App
Minimum Isolation Voltage:
1500Vac
Minimum AC Input Voltage:
90
Mounting Style:
External
Input Frequency:
47 to 63 Hz
Style:
Desktop Adapter
Typical Inrush Current:
40/80A(Max) at 115/230Vac
Operating Temperature:
0 to 40 °C
MOPP:
Not App
Typical Hold-Up Time:
Not Spec'd
CoC Tier:
No
Output Connector Angle:
Straight
Output Current:
3.6 A
Dimensions L x W x H:
80.6 x 50.0 x 31.0 mm
Maximum Input Voltage:
264Vac
Maximum Output Power:
18 W
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Type:
Regulated-Switching
Minimum DC Input Voltage:
Not App
Output Cord Length:
1.0m (39.4in)
DC Input Voltage:
Not App
AC Input Voltage:
90 to 264
Grade:
Commercial
Line Regulation:
5.00 %
Power Rating:
18 W
AC Input Current - Maximum:
0.5A
Maximum AC Input Voltage:
264
Output Connector Diameters:
2.1 x 5.5 mm
Overload Protection:
No
Ripple & Noise:
100 mV
Input/Output Type:
AC/DC
Efficiency:
Not Spec'd
Load Regulation:
5.00 %
Family:
ETSA-18W-U
AC Input Current - Typical:
Not Spec'd
Number of Outputs:
1
Short Circuit Protection:
Yes
DOE Efficiency Level:
V
Adapter Color:
Black
Input Connector Type:
IEC 320-C14
Package Type:
Desktop
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 18 Watts : 5V @ 3.6A - Lvl V
Search Keywords:
ETSA050360UP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

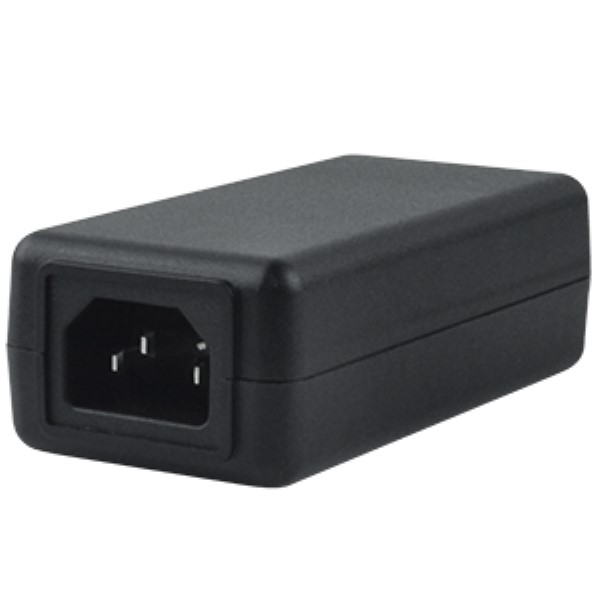

RECOMMENDED REPLACEMENT
SDI18-5-U-P5
SDI18-5-U-P5
