ETSA050200UDC-P5RP-SZ by cui inc.
Image is representational - see mfr. specs

ETSA050200UDC-P5RP-SZ

CUI Inc.

AC/DC Adapter - Desktop - 12 Watts: 5V @ 2A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA050200UDC-P5RP-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Load Regulation:
5.00 %
Short Circuit Protection:
Yes
CoC Tier:
No
Overload Protection:
No
Output Connector Angle:
Right Angle
Minimum Isolation Voltage:
4242Vdc/3000Vac
Grade:
Commercial
AC Input Current - Typical:
Not Spec'd
Operating Temperature:
0 to 40 °C
Output Cord Length:
1.83m (72.1in)
AC Input Current - Maximum:
0.3A
Maximum Input Voltage:
264Vac
Maximum Output Power:
10 W
PFC:
No
Maximum DC Input Voltage:
Not App
Output Type:
Fixed
Input Frequency:
47 to 63 Hz
Thermal Protection:
No
DOE Efficiency Level:
V
Ripple & Noise:
150 mV
Dimensions L x W x H:
75.0 x 47.5 x 27.3 mm
Output Connector Polarity:
Center Positive
Number of Outputs:
1
MOPP:
Not App
Power Rating:
10 W
Maximum Output Current:
2.0 A
Mounting Style:
External
Maximum Input Current:
Not Spec'd
Style:
Desktop Adapter
Dimensions L x W x H(in):
2.96 x 1.87 x 1.08 in
Type:
Regulated-Switching
AC Input Voltage:
90 to 264
Output Voltage:
5 VDC
Adapter Color:
Black
Maximum AC Input Voltage:
264
Input Connector Type:
IEC 320-C8
Safety Class:
None
Package Type:
Desktop
Over Voltage Protection:
Yes
Line Regulation:
1.00 %
Minimum AC Input Voltage:
90
Input/Output Type:
AC/DC
Minimum Input Voltage:
90Vac
Dimensions LxWxH:
2.96 x 1.87 x 1.08 in
Input Voltage:
90 to 264Vac
Typical Inrush Current:
30/60A(Max) at 115/230Vac
Mounting:
External
Safety Approvals:
CE, cUL, GS, TUV, UL
Family:
ETSA-12W-UD
Minimum DC Input Voltage:
Not App
Efficiency:
Not Spec'd
Minimum Load (Amps):
0
Power Indicator:
No
Power:
10 W
Output Connector Diameters:
2.1 x 5.5 mm
Dimension:
75 x 47.5 x 27.3 mm
Output Current:
2.0 A
Typical Hold-Up Time:
Not Spec'd
DC Input Voltage:
Not App
Output Connector Type:
Barrel - Female
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 12 Watts: 5V @ 2A - C8 Input - Lvl V
Search Keywords:
ETSA050200UDCP5RPSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT

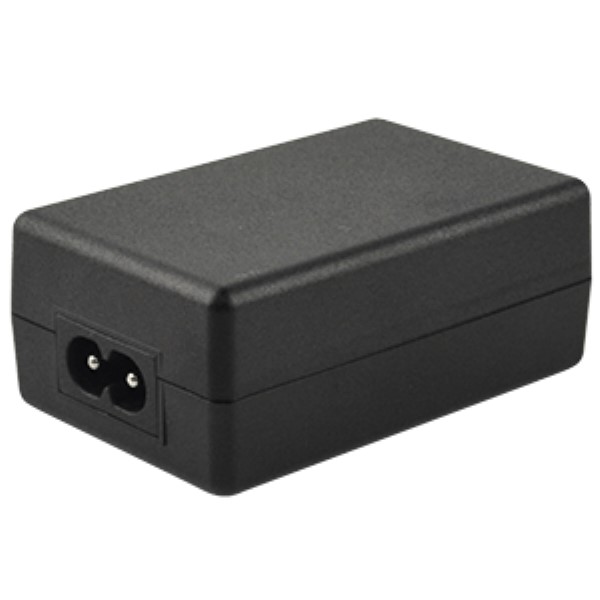

SDI12-5-UDC-P6R
SDI12-5-UDC-P6R
VIEW PRODUCT
