ETMA180165UD-P6RP-IC by cui inc.
Image is representational - see mfr. specs
DATA SHEET

ETMA180165UD-P6RP-IC

CUI Inc.

AC/DC Adapter - Desktop - 30 Watts: 18V @ 1.65A - C8 Input - Medical - Lvl V

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETMA180165UD-P6RP-IC
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Efficiency:
Not Spec'd
Overload Protection:
No
Output Current:
1.65 A
Output Cord Length:
1.8m (70.9in)
Maximum AC Input Voltage:
264
Power Indicator:
Yes
Number of Outputs:
1
Package Type:
Desktop
Short Circuit Protection:
Yes
Mounting:
External
Dimension:
110 x 50 x 30 mm
Input/Output Type:
AC/DC
Thermal Protection:
No
Type:
Regulated-Switching
MOPP:
Not App
Mounting Style:
External
Ripple & Noise:
180 mV
DC Input Voltage:
Not App
Input Voltage:
90 to 264Vac
Over Voltage Protection:
Yes
AC Input Current - Maximum:
0.6A
Typical Hold-Up Time:
16 ms
Dimensions L x W x H:
110.0 x 50.0 x 30.0 mm
Minimum Load (Amps):
0
Power Rating:
30 W
Safety Approvals:
CE, cUL, TUV, UL
DOE Efficiency Level:
V
CoC Tier:
No
Input Connector Type:
IEC 320-C8
Family:
ETMA-30W
Maximum DC Input Voltage:
Not App
Load Regulation:
2.00 %
Maximum Output Power:
30 W
Output Connector Polarity:
Center Positive
Maximum Input Voltage:
264Vac
Dimensions LxWxH:
4.33 x 1.99 x1.19 in
Minimum Input Voltage:
90Vac
Grade:
Medical
PFC:
No
Maximum Input Current:
Not Spec'd
Output Connector Type:
Barrel - Female
Minimum AC Input Voltage:
90
Safety Class:
None
Output Type:
Fixed
Maximum Output Current:
1.65 A
AC Input Voltage:
90 to 264
Output Connector Angle:
Right Angle
AC Input Current - Typical:
Not Spec'd
Output Connector Diameters:
2.5 x 5.5 mm
Style:
Desktop Adapter
Adapter Color:
Black
Power:
30 W
Special Features:
Low Leakage Current
Dimensions L x W x H(in):
4.33 x 1.99 x 1.19 in
Input Frequency:
47 to 63 Hz
Operating Temperature:
0 to 40 °C
Line Regulation:
1.00 %
Output Voltage:
18 VDC
Typical Inrush Current:
50A(Max) at 240Vac
Minimum DC Input Voltage:
Not App
Minimum Isolation Voltage:
5656Vdc
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 30 Watts: 18V @ 1.65A - C8 Input - Medical - Lvl V
Search Keywords:
ETMA180165UDP6RPIC
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

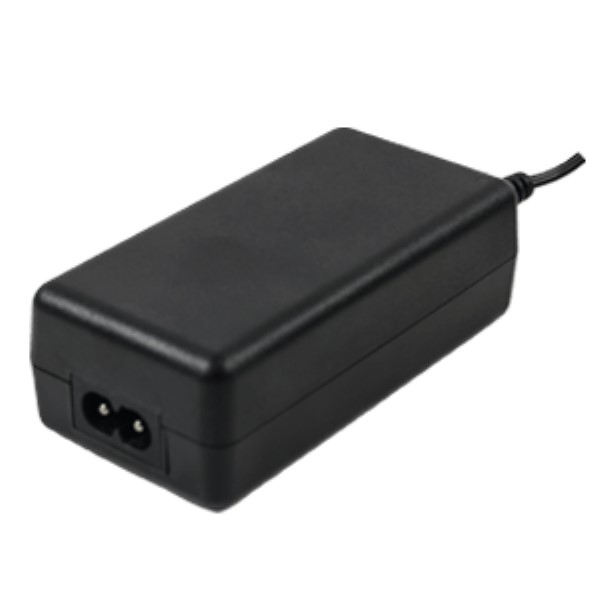

RECOMMENDED REPLACEMENT
SDM36-18-UD-P6R
SDM36-18-UD-P6R
VIEW PRODUCT
Product Guides
PDF 3D Model
PDF Datasheet
