DATA SHEET

ETMA180165UD-P5P-IC

CUI Inc.

AC/DC Adapter - Desktop - 30 Watts: 18V @ 1.65A - C8 Input - Medical - Lvl V

RoHS Compliant

Box Packaging

Accessories

Discontinued & Replaced

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

CUI Inc.

Part No:

ETMA180165UD-P5P-IC

RoHS:

Yes

HTS:

8504409510

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Package Type:

Box

Number of Outputs:

Style:

Desktop Adapter

Maximum AC Input Voltage:

264

Dimensions LxWxH:

4.33 x 1.99 x1.19 in

Dimension:

110 x 50 x 30 mm

Over Voltage Protection:

Yes

Power Indicator:

Yes

Short Circuit Protection:

Yes

Overload Protection:

Input Voltage:

90 to 264Vac

Input/Output Type:

AC/DC

PFC:

Minimum Isolation Voltage:

5656Vdc

Safety Approvals:

CE, cUL, TUV, UL

Dimensions L x W x H:

110.0 x 50.0 x 30.0 mm

DC Input Voltage:

Not App

Output Current:

1.65 A

Typical Hold-Up Time:

16 ms

Mounting Style:

External

Output Connector Diameters:

2.1 x 5.5 mm

Output Connector Angle:

Straight

DOE Efficiency Level:

Efficiency:

Not Spec'd

Operating Temperature:

0 to 40 °C

Safety Class:

None

AC Input Current - Typical:

Not Spec'd

Ripple & Noise:

180 mV

AC Input Current - Maximum:

0.6A

Output Connector Polarity:

Center Positive

Minimum DC Input Voltage:

Not App

Output Cord Length:

1.8m (70.9in)

CoC Tier:

Minimum Load (Amps):

Dimensions L x W x H(in):

4.33 x 1.99 x 1.19 in

Load Regulation:

2.00 %

Output Connector Type:

Barrel - Female

Maximum DC Input Voltage:

Not App

Thermal Protection:

Output Voltage:

18 VDC

Maximum Input Current:

Not Spec'd

Adapter Color:

Black

Family:

ETMA-30W

Special Features:

Low Leakage Current

MOPP:

Not App

AC Input Voltage:

90 to 264

Input Connector Type:

IEC 320-C8

Minimum Input Voltage:

90Vac

Typical Inrush Current:

50A(Max) at 240Vac

Line Regulation:

1.00 %

Input Frequency:

47 to 63 Hz

Maximum Output Current:

1.65 A

Power Rating:

30 W

Output Type:

Fixed

Minimum AC Input Voltage:

Package Type:

Desktop

Power:

30 W

Grade:

Medical

Type:

Regulated-Switching

Mounting:

External

Maximum Output Power:

30 W

Maximum Input Voltage:

264Vac

Life Cycle:

Discontinued & Replaced

AC/DC Adapter - Desktop - 30 Watts: 18V @ 1.65A - C8 Input - Medical - Lvl V

Product Highlights:

Potential Applications:

Search Keywords:

ETMA180165UDP5PIC

This product is not in stock and cannot be back-ordered

This product is discontinued, but still in stock

This product is not in stock and cannot be back-ordered

Different packaging options available. See Alternatives

Possible Replacement options available. See Alternatives

This product is NOT RoHS Compliant. See Alternatives

End of Life: Final orders must be placed by 04/16/2024

IN STOCK: 0

BONDED Quantity:

Manufacturer Stock:

0 can ship

On Order:

Stock lot only:

MOQ for out of Stock Qty:

Multiple:

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

VIEW PRODUCT

Min quantity should be greater than or equal () in order to activate the custom price. Otherwise you will get the normal price.

Price (USD)

Quantity

Unit Price

Ext. Price

$90.56

$89.20

$892.00

$87.86

$2,196.50

$86.54

$4,327.00

$85.24

$5,370.12

125

$45.35

$5,668.75

188

$31.10

$5,846.80

250 +

$30.48

$7,620.00

Suppliers Standard Package

Standard Packaging

Standard packaging is the minimum package size Eccoconnectors.com receives from the supplier. The minimum order quantity might be less than the supplier's standard packaging. The type of packaging (such as reel, tube, tray) may be subject to change when the product is divided into smaller quantities.

Click for Quote

Please Note: Tariffs may apply for U.S. shipments

Schedule Order

You may schedule release quantities and ship dates in the shopping cart.

RECOMMENDED REPLACEMENT

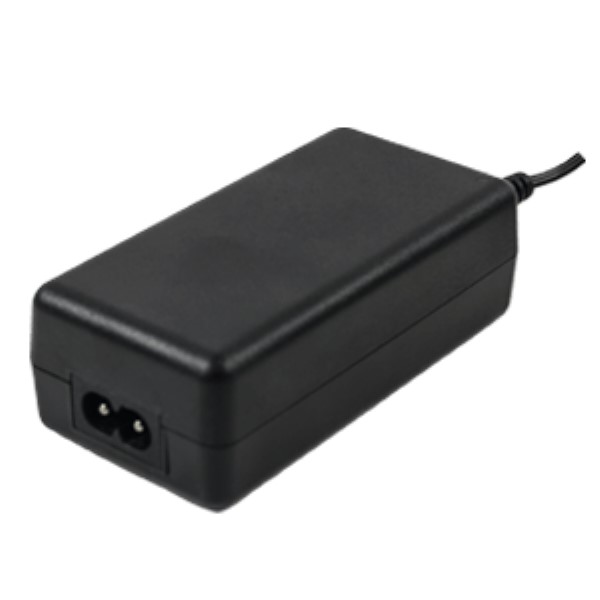

SDM36-18-UD-P5
